U-Net Convolutional Networks for Image Segmentation

Credits: https://git.lcsr.jhu.edu/cjones96/basic-unet-segmentation

18. U-Net Convolutional Networks for Image Segmentation#

18.1. U-Net#

U-Net is a widely used deep learning architecture that was first introduced in the “U-Net: Convolutional Networks for Biomedical Image Segmentation” paper. The primary purpose of this architecture was to address the challenge of limited annotated data in the medical field. This network was designed to effectively leverage a smaller amount of data while maintaining speed and accuracy.

The architecture of U-Net is unique in that it consists of a contracting path and an expansive path. The contracting path contains encoder layers that capture contextual information and reduce the spatial resolution of the input, while the expansive path contains decoder layers that decode the encoded data and use the information from the contracting path via skip connections to generate a segmentation map.

The contracting path in U-Net is responsible for identifying the relevant features in the input image. The encoder layers perform convolutional operations that reduce the spatial resolution of the feature maps while increasing their depth, thereby capturing increasingly abstract representations of the input. This contracting path is similar to the feedforward layers in other convolutional neural networks. On the other hand, the expansive path works on decoding the encoded data and locating the features while maintaining the spatial resolution of the input. The decoder layers in the expansive path upsample the feature maps, while also performing convolutional operations. The skip connections from the contracting path help to preserve the spatial information lost in the contracting path, which helps the decoder layers to locate the features more accurately.

alt text

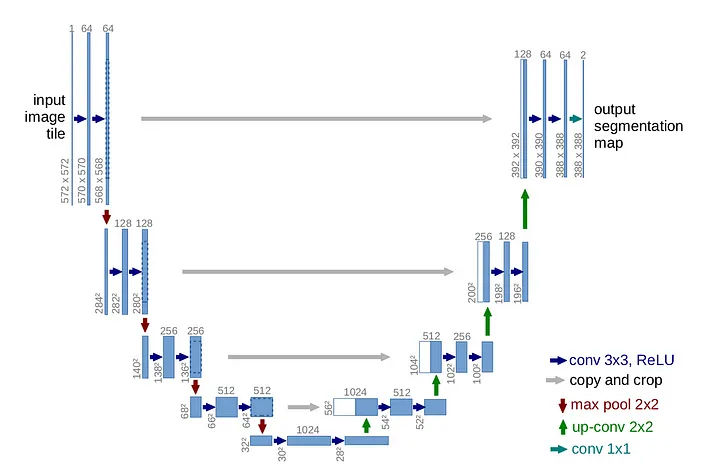

Source: https://arxiv.org/pdf/1505.04597

18.2. Explanation#

Credits: see blog by A. Ito Armendia

The Contracting Path of U-Net

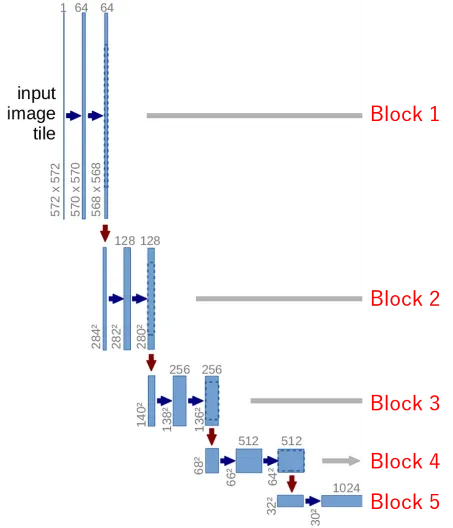

alt text

Block 1

An input image with dimensions 572² is fed into the U-Net. This input image consists of only 1 channel, likely a grayscale channel. Two 3x3 convolution layers (unpadded) are then applied to the input image, each followed by a ReLU layer. At the same time the number of channels are increased to 64 in order to capture higher level features. A 2x2 max pooling layer with a stride of 2 is then applied. This downsamples the feature map to half its size, 284².

Block 2

Just like in block 1, two 3x3 convolution layers (unpadded) are applied to the output of block 1, each followed again by a ReLU layer. At each new block the number of feature channels are doubled, now to 128. Next a 2x2 max pooling layer is again applied to the resulting feature map reducing the spatial dimensions by half to 140².

Block 3

The procedure used in block 1 and 2 is the same as in block 3, so will not be repeated.

Block 4

Same as block 3.

Block 5

In the final block of the contracting path, the number of feature channels reach 1024 after being doubled at each block. This block also contains two 3x3 convolution layers (unpadded), which are each followed by a ReLU layer. However, for symmetry purposes, I have only included one layer and included the second layer in the expanding path. After complex features and patterns have been extracted, the feature map moves on to the expanding path.

The Expanding Path

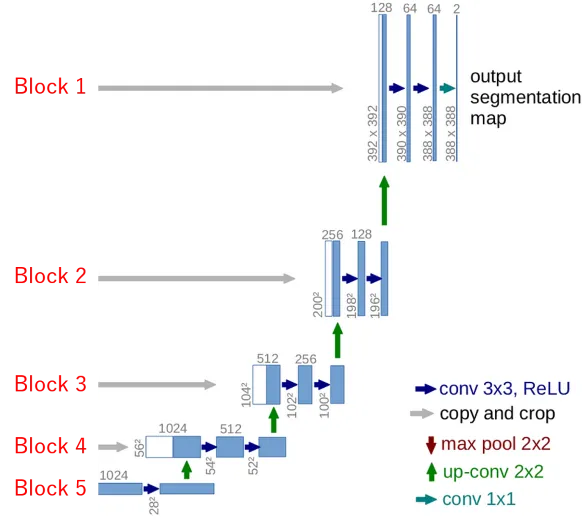

alt text

Block 5

  1. Continuing on from the contracting path, a second 3x3 convolution (unpadded) is applied with a ReLU layer after it.

  2. Then a 2x2 convolution (up-convolution) layer is applied, upsampling the spatial dimensions twofold and also halving the number of channels to 512.

Block 4

  1. Using skip connections, the corresponding feature map from the contracting path is then concatenated, doubling the feature channels to 1024. Note that this concatenation must be cropped to match the expanding path’s dimensions.

  2. Two 3x3 convolution layers (unpadded) are applied, each with a ReLU layer following, reducing the channels to 512.

  3. After, a 2x2 convolution (up-convolution) layer is applied, upsampling the spatial dimensions twofold and also halving the number of channels to 256.

Block 3

The procedure used in block 5 and 4 is the same as in block 3, so will not be repeated.

Block 2

Same as block 3.

Block 1

  1. In the final block of the expanding path, there are 128 channels after concatenating the skip connection.

  2. Next, two 3x3 convolution layers (unpadded) are applied on the feature map, with ReLU layers inbetween reducing the number of feature channels to 64.

  3. Finally, a 1x1 convolution layer, followed by an activation layer (sigmoid for binary classification) is used to reduce the number of channels to the desired number of classes. In this case, 2 classes, as binary classification is often used in medical imaging.

After upsampling the feature map in the expanding path, a segmentation map should be generated, with each pixel classified individually.

N.b.

i. Skipping connections include cropping.

ii. The up-conv reduce the number of channels.

iii. The final ouput has slightly lower resolution, i.e., reduced dimensionality, compared to the input, as a result of the conv operations and cropping. The final number of channels is 2, in that for the problem at hand we have two classes.
