(Tut 1) Deep Learning Deep Inelastic Scattering at EIC#

Credits:

Heavily based on:

  • Reconstructing the Kinematics of Deep Inelastic Scattering with Deep Learning by Miguel Arratia, Daniel Britzger, Owen Long, Benjamin Nachman arXiv:2110.05505 — [code, dataset]

  • Deeply Learning Deep Inelastic Scattering Kinematics, by Markus Diefenthaler, Abdullah Farhat, Andrii Verbytskyi, Yuesheng Xu,arXiv:2108.11638

Training for H1 rapgap MC with reconstructed observables as input.#

This uses a single DNN with all inputs (electron, HFS, photons)#

Adjust Huber delta to 0.01.

%load_ext autoreload
%autoreload 2
from google.colab import drive
drive.mount('/content/drive')
Mounted at /content/drive
# Make sure GPU runtime is enabled.
# Runtime -> Change Runtime Type -> Hardware Accelerator -> GPU
# You will likely only have a T4, unless you have colab pro.
!nvidia-smi
Tue May 27 04:39:19 2025
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 550.54.15              Driver Version: 550.54.15      CUDA Version: 12.4     |
|-----------------------------------------+------------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id          Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |           Memory-Usage | GPU-Util  Compute M. |
|                                         |                        |               MIG M. |
|=========================================+========================+======================|
|   0  Tesla T4                       Off |   00000000:00:04.0 Off |                    0 |
| N/A   45C    P8              9W /   70W |       0MiB /  15360MiB |      0%      Default |
|                                         |                        |                  N/A |
+-----------------------------------------+------------------------+----------------------+

+-----------------------------------------------------------------------------------------+
| Processes:                                                                              |
|  GPU   GI   CI        PID   Type   Process name                              GPU Memory |
|        ID   ID                                                               Usage      |
|=========================================================================================|
|  No running processes found                                                             |
+-----------------------------------------------------------------------------------------+
# We need uproot to unpack the ROOT file.
#!pip uninstall -y uproot3
!pip install uproot
Found existing installation: uproot3 3.14.4
Uninstalling uproot3-3.14.4:
  Successfully uninstalled uproot3-3.14.4
Collecting uproot
  Downloading uproot-5.6.2-py3-none-any.whl.metadata (33 kB)
Collecting awkward>=2.4.6 (from uproot)
  Downloading awkward-2.8.3-py3-none-any.whl.metadata (7.0 kB)
Requirement already satisfied: cramjam>=2.5.0 in /usr/local/lib/python3.11/dist-packages (from uproot) (2.10.0)
Requirement already satisfied: fsspec in /usr/local/lib/python3.11/dist-packages (from uproot) (2025.3.2)
Requirement already satisfied: numpy in /usr/local/lib/python3.11/dist-packages (from uproot) (2.0.2)
Requirement already satisfied: packaging in /usr/local/lib/python3.11/dist-packages (from uproot) (24.2)
Requirement already satisfied: xxhash in /usr/local/lib/python3.11/dist-packages (from uproot) (3.5.0)
Collecting awkward-cpp==46 (from awkward>=2.4.6->uproot)
  Downloading awkward_cpp-46-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (2.1 kB)
Requirement already satisfied: importlib-metadata>=4.13.0 in /usr/local/lib/python3.11/dist-packages (from awkward>=2.4.6->uproot) (8.7.0)
Requirement already satisfied: zipp>=3.20 in /usr/local/lib/python3.11/dist-packages (from importlib-metadata>=4.13.0->awkward>=2.4.6->uproot) (3.21.0)
Downloading uproot-5.6.2-py3-none-any.whl (375 kB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 375.7/375.7 kB 15.0 MB/s eta 0:00:00
?25hDownloading awkward-2.8.3-py3-none-any.whl (886 kB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 886.1/886.1 kB 42.5 MB/s eta 0:00:00
?25hDownloading awkward_cpp-46-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (638 kB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 638.7/638.7 kB 50.1 MB/s eta 0:00:00
?25hInstalling collected packages: awkward-cpp, awkward, uproot
Successfully installed awkward-2.8.3 awkward-cpp-46 uproot-5.6.2
%pip install awkward-pandas
Collecting awkward-pandas
  Using cached awkward_pandas-2023.8.0-py3-none-any.whl.metadata (2.1 kB)
Requirement already satisfied: awkward>=2.0.0 in /usr/local/lib/python3.11/dist-packages (from awkward-pandas) (2.8.3)
Requirement already satisfied: pandas>=1.2 in /usr/local/lib/python3.11/dist-packages (from awkward-pandas) (2.2.2)
Requirement already satisfied: awkward-cpp==46 in /usr/local/lib/python3.11/dist-packages (from awkward>=2.0.0->awkward-pandas) (46)
Requirement already satisfied: fsspec>=2022.11.0 in /usr/local/lib/python3.11/dist-packages (from awkward>=2.0.0->awkward-pandas) (2025.3.2)
Requirement already satisfied: importlib-metadata>=4.13.0 in /usr/local/lib/python3.11/dist-packages (from awkward>=2.0.0->awkward-pandas) (8.7.0)
Requirement already satisfied: numpy>=1.18.0 in /usr/local/lib/python3.11/dist-packages (from awkward>=2.0.0->awkward-pandas) (2.0.2)
Requirement already satisfied: packaging in /usr/local/lib/python3.11/dist-packages (from awkward>=2.0.0->awkward-pandas) (24.2)
Requirement already satisfied: python-dateutil>=2.8.2 in /usr/local/lib/python3.11/dist-packages (from pandas>=1.2->awkward-pandas) (2.9.0.post0)
Requirement already satisfied: pytz>=2020.1 in /usr/local/lib/python3.11/dist-packages (from pandas>=1.2->awkward-pandas) (2025.2)
Requirement already satisfied: tzdata>=2022.7 in /usr/local/lib/python3.11/dist-packages (from pandas>=1.2->awkward-pandas) (2025.2)
Requirement already satisfied: zipp>=3.20 in /usr/local/lib/python3.11/dist-packages (from importlib-metadata>=4.13.0->awkward>=2.0.0->awkward-pandas) (3.21.0)
Requirement already satisfied: six>=1.5 in /usr/local/lib/python3.11/dist-packages (from python-dateutil>=2.8.2->pandas>=1.2->awkward-pandas) (1.17.0)
Using cached awkward_pandas-2023.8.0-py3-none-any.whl (11 kB)
Installing collected packages: awkward-pandas
Successfully installed awkward-pandas-2023.8.0
import time
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.ticker as mticker
from matplotlib.colors import LogNorm
from matplotlib import rc
from numpy import inf
import os

from os import listdir


import uproot

import matplotlib as mpl

from datetime import datetime
import subprocess

import seaborn as sns
#has_gpu = False

has_gpu = True

training_name = 'training_h1_reg_hugs25_v1'

#training_extname = "/content/drive/My Drive/projects/DIS-reco/DIS-reco-paper/"+training_name

saving_dir = "/content/drive/My Drive/TMP/"

training_extname = saving_dir+training_name


#--- Hyperparameter settings.

#max_events =   120000
#max_events =   600000
max_events = 10e6
#max_events =  3000000
#max_events = 15000000


learning_rate_setval_reg = 1e-5
batch_size_setval = 1024
max_epochs = 25
dropout_setval = 0.0
amsgrad_setval = False
delta_setval = 0.01

# Path to the ROOT file in your google drive. Make sure your drive is mounted above.
#input_file = '/content/drive/My Drive/projects/DIS-reco/data/all-h1-rapgap.root'

#input_url = 'https://drive.google.com/file/d/1Z-lUTZrHoqeKsYHf34gR3kF45bVM6XG7/view'

input_id = '1Z-lUTZrHoqeKsYHf34gR3kF45bVM6XG7'
input_url = 'https://drive.google.com/uc?id='+input_id


outprintfile = training_extname+"-setup.txt"

parfile = open(outprintfile,'w')

parfile.write('%s\n' % datetime.now())
parfile.write('training_name : %s\n' % training_extname )
parfile.write('input_file : %s\n' % input_id ) #input_file
parfile.write('max_events : %d\n' % max_events )
parfile.write('learning_rate_setval_reg : %g\n' % learning_rate_setval_reg )
parfile.write('batch_size_setval : %d\n' % batch_size_setval )
parfile.write('max_epochs : %d\n' % max_epochs )
parfile.write('dropout_setval : %g\n' % dropout_setval )
parfile.write('amsgrad_setval : %g\n' % amsgrad_setval )
parfile.write('delta_setval : %g\n' % delta_setval )

parfile.close()

command_string = ("cat '%s'")% outprintfile

print( subprocess.getoutput(command_string) )
print('\n\n')
2025-05-27 05:28:30.764762
training_name : /content/drive/My Drive/TMP/training_h1_reg_hugs25_v1
input_file : 1Z-lUTZrHoqeKsYHf34gR3kF45bVM6XG7
max_events : 10000000
learning_rate_setval_reg : 1e-05
batch_size_setval : 1024
max_epochs : 50
dropout_setval : 0
amsgrad_setval : 0
delta_setval : 0.01
%pip install -q gdown
!gdown --id 1Z-lUTZrHoqeKsYHf34gR3kF45bVM6XG7 --output myfile.root
/usr/local/lib/python3.11/dist-packages/gdown/__main__.py:140: FutureWarning: Option `--id` was deprecated in version 4.3.1 and will be removed in 5.0. You don't need to pass it anymore to use a file ID.
  warnings.warn(
Downloading...
From (original): https://drive.google.com/uc?id=1Z-lUTZrHoqeKsYHf34gR3kF45bVM6XG7
From (redirected): https://drive.google.com/uc?id=1Z-lUTZrHoqeKsYHf34gR3kF45bVM6XG7&confirm=t&uuid=0faca380-f948-40d0-abaf-6b1615044e84
To: /content/myfile.root
100% 6.51G/6.51G [01:01<00:00, 106MB/s]
!head -c 20 myfile.root
root5Ad�$N
%%time

#ur_file = uproot3.open(input_file)
ur_file = uproot.open("myfile.root")

print("ur_file.keys(): ", ur_file.keys())

ur_tree = ur_file['Rapgap/minitree']
print(ur_tree)
ur_tree.show()

#pandas_df   =  ur_tree.pandas.df(['*'], entrystop=max_events,flatten=True)
pandas_df = ur_tree.arrays(
    [
        'has_isr', 'has_fsr',
        'tower_sum_40', 'n_towers_40',
        'eta_pho_closest_to_ebeam', 'e_pho_closest_to_ebeam', 'phi_pho_closest_to_ebeam',
        'obs_x', 'obs_y', 'obs_Q2',
        'from_tlv_gen_Q2', 'from_tlv_gen_x', 'from_tlv_gen_y',
        'obs_e_e', 'obs_e_pz', 'obs_e_pt', 'obs_e_phi',
        'obs_hfs_e', 'obs_hfs_pz', 'obs_hfs_pt', 'obs_hfs_phi',
        'obs_dphi',
        'Empz', 'obs_e_trk_e',
        'beam_e_e'
    ],
    entry_stop=max_events,
    library="pd"
)


print('\n\n Number of entries in pandas_df:  %d ' % pandas_df.shape[0] )
ur_file.keys():  ['Rapgap;1', 'Rapgap/minitree;1', 'Rapgap/DISEvent;1', 'Rapgap/DISEvent/13_1_before_cuts;1', 'Rapgap/DISEvent/13_1_before_cuts_lxy;1', 'Rapgap/DISEvent/13_2_detector_cuts;1', 'Rapgap/DISEvent/13_2_detector_cuts_lxy;1']
<TTree 'minitree' (42 branches) at 0x7a1f7d93b510>
name                 | typename                 | interpretation
---------------------+--------------------------+-------------------------------
wgt                  | float                    | AsDtype('>f4')
Empz                 | float                    | AsDtype('>f4')
from_tlv_gen_Q2      | float                    | AsDtype('>f4')
from_tlv_gen_x       | float                    | AsDtype('>f4')
from_tlv_gen_y       | float                    | AsDtype('>f4')
beam_e_e             | float                    | AsDtype('>f4')
beam_p_e             | float                    | AsDtype('>f4')
has_isr              | int8_t                   | AsDtype('int8')
has_fsr              | int8_t                   | AsDtype('int8')
gen_e_e              | float                    | AsDtype('>f4')
gen_e_pz             | float                    | AsDtype('>f4')
gen_e_pt             | float                    | AsDtype('>f4')
gen_e_phi            | float                    | AsDtype('>f4')
gen_e_eta            | float                    | AsDtype('>f4')
gen_hfs_e            | float                    | AsDtype('>f4')
gen_hfs_pz           | float                    | AsDtype('>f4')
gen_hfs_pt           | float                    | AsDtype('>f4')
gen_hfs_phi          | float                    | AsDtype('>f4')
gen_hfs_eta          | float                    | AsDtype('>f4')
gen_dphi             | float                    | AsDtype('>f4')
obs_e_e              | float                    | AsDtype('>f4')
obs_e_pz             | float                    | AsDtype('>f4')
obs_e_pt             | float                    | AsDtype('>f4')
obs_e_phi            | float                    | AsDtype('>f4')
obs_e_eta            | float                    | AsDtype('>f4')
obs_hfs_e            | float                    | AsDtype('>f4')
obs_hfs_pz           | float                    | AsDtype('>f4')
obs_hfs_pt           | float                    | AsDtype('>f4')
obs_hfs_phi          | float                    | AsDtype('>f4')
obs_hfs_eta          | float                    | AsDtype('>f4')
obs_dphi             | float                    | AsDtype('>f4')
obs_x                | float[9]                 | AsDtype("('>f4', (9,))")
obs_y                | float[9]                 | AsDtype("('>f4', (9,))")
obs_Q2               | float[9]                 | AsDtype("('>f4', (9,))")
phi_pho_closest_t... | float                    | AsDtype('>f4')
eta_pho_closest_t... | float                    | AsDtype('>f4')
e_pho_closest_to_... | float                    | AsDtype('>f4')
tower_sum_40         | float                    | AsDtype('>f4')
n_towers_40          | int32_t                  | AsDtype('>i4')
obs_e_trk_e          | float                    | AsDtype('>f4')
obs_e_trk_eta        | float                    | AsDtype('>f4')
obs_e_trk_phi        | float                    | AsDtype('>f4')


 Number of entries in pandas_df:  10000000
CPU times: user 11.1 s, sys: 4.82 s, total: 15.9 s
Wall time: 18.6 s
print(len(pandas_df))
pandas_df.head()
10000000
has_isr has_fsr tower_sum_40 n_towers_40 eta_pho_closest_to_ebeam e_pho_closest_to_ebeam phi_pho_closest_to_ebeam obs_x obs_y obs_Q2 ... obs_e_pt obs_e_phi obs_hfs_e obs_hfs_pz obs_hfs_pt obs_hfs_phi obs_dphi Empz obs_e_trk_e beam_e_e
0 1 0 0.0 0 0.0 0.0 0.0 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 27.6
1 1 0 0.0 0 0.0 0.0 0.0 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 27.6
2 1 0 0.0 0 0.0 0.0 0.0 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 27.6
3 1 0 0.0 0 0.0 0.0 0.0 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 27.6
4 0 0 0.0 0 0.0 0.0 0.0 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 27.6

5 rows × 25 columns

pandas_df.tail()
has_isr has_fsr tower_sum_40 n_towers_40 eta_pho_closest_to_ebeam e_pho_closest_to_ebeam phi_pho_closest_to_ebeam obs_x obs_y obs_Q2 ... obs_e_pt obs_e_phi obs_hfs_e obs_hfs_pz obs_hfs_pt obs_hfs_phi obs_dphi Empz obs_e_trk_e beam_e_e
9999995 1 0 0.000000 0 0.000000 0.000000 0.000000 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 27.6
9999996 0 1 47.094521 2 -0.124716 8.941693 2.411923 [0.058499809354543686 0.05831887200474739 0.05... [0.4024747610092163 0.4050461947917938 0.40504... [2391.388916015625 2399.22412109375 2381.09741... ... 37.800995 2.692896 119.429268 97.070717 37.856754 -0.424569 3.117465 55.341942 39.459339 27.6
9999997 0 0 17.333700 1 -0.806077 0.196039 0.073661 [0.004271071404218674 0.002905079396441579 0.0... [0.43371501564979553 0.4118492603302002 0.4118... [188.14749145507812 121.5215835571289 195.4123... ... 10.322068 -2.546395 49.432240 26.698160 10.748409 0.720433 3.016356 53.993011 16.515560 27.6
9999998 1 0 0.000000 0 0.000000 0.000000 0.000000 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 27.6
9999999 0 1 0.000000 0 0.000000 0.000000 0.000000 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 27.6

5 rows × 25 columns

pandas_df.eval( 'obs_hfs_Empz = obs_hfs_e - obs_hfs_pz', inplace=True )
pandas_df.eval( 'obs_e_Empz = obs_e_e - obs_e_pz', inplace=True )

pandas_df.eval( 'obs_event_Empz = obs_hfs_Empz + obs_e_Empz', inplace=True )

pandas_df.eval( 'rot_pt1 = 0.70710678 * obs_hfs_pt - 0.70710678 * obs_e_pt', inplace=True )
pandas_df.eval( 'rot_pt2 = 0.70710678 * obs_hfs_pt + 0.70710678 * obs_e_pt', inplace=True )

pandas_df.eval( 'rot_Empz1 = 0.70710678 * obs_hfs_Empz - 0.70710678 * obs_e_Empz', inplace=True )
pandas_df.eval( 'rot_Empz2 = 0.70710678 * obs_hfs_Empz + 0.70710678 * obs_e_Empz', inplace=True )

pandas_df.eval( 'gen_log_x = log(from_tlv_gen_x)', inplace=True )
pandas_df.eval( 'gen_log_y = log(from_tlv_gen_y)', inplace=True )
pandas_df.eval( 'gen_log_Q2 = log(from_tlv_gen_Q2)', inplace=True )

pandas_df.eval( 'e_ecal_over_trk_ratio = tower_sum_40/obs_e_trk_e', inplace=True )
pandas_df.eval( 'e_ecal_over_trk_ratio = (e_ecal_over_trk_ratio<4)*e_ecal_over_trk_ratio + (e_ecal_over_trk_ratio>4)*4', inplace=True )

pandas_df.eval( 'dphi_pho_closest_to_ebeam = obs_e_phi - phi_pho_closest_to_ebeam', inplace=True )
pandas_df.eval( 'dphi_pho_closest_to_ebeam = (abs(dphi_pho_closest_to_ebeam)<3.14159265)*(dphi_pho_closest_to_ebeam)+(dphi_pho_closest_to_ebeam>3.14159265)*(dphi_pho_closest_to_ebeam-2*3.14159265) + (dphi_pho_closest_to_ebeam<-3.14159265)*(dphi_pho_closest_to_ebeam+2*3.14159265)', inplace=True )
pandas_df.eval( 'dphi_pho_closest_to_ebeam = (dphi_pho_closest_to_ebeam>0)*dphi_pho_closest_to_ebeam + (dphi_pho_closest_to_ebeam<0)*(dphi_pho_closest_to_ebeam+2*3.14159265)', inplace=True )
pandas_df.eval( 'dphi_pho_closest_to_ebeam = (phi_pho_closest_to_ebeam!=0)*(dphi_pho_closest_to_ebeam)+(phi_pho_closest_to_ebeam==0)*(-1)', inplace=True )

pandas_df.eval( 'e_pho_closest_to_ebeam = (e_pho_closest_to_ebeam<30)*e_pho_closest_to_ebeam + (e_pho_closest_to_ebeam>30)*30', inplace=True )

pandas_df.eval( 'n_towers_40 = (n_towers_40<7)*n_towers_40 + (n_towers_40>=7)*7', inplace=True  )

pandas_df.eval( 'has_norad = (has_isr==0) and (has_fsr==0)', inplace=True )
<ipython-input-25-4103e232d686>:20: FutureWarning: Setting an item of incompatible dtype is deprecated and will raise in a future error of pandas. Value '[ 0.          0.          0.         ... -2.62005591  0.
  0.        ]' has dtype incompatible with float32, please explicitly cast to a compatible dtype first.
  pandas_df.eval( 'dphi_pho_closest_to_ebeam = (abs(dphi_pho_closest_to_ebeam)<3.14159265)*(dphi_pho_closest_to_ebeam)+(dphi_pho_closest_to_ebeam>3.14159265)*(dphi_pho_closest_to_ebeam-2*3.14159265) + (dphi_pho_closest_to_ebeam<-3.14159265)*(dphi_pho_closest_to_ebeam+2*3.14159265)', inplace=True )
<ipython-input-25-4103e232d686>:26: FutureWarning: Setting an item of incompatible dtype is deprecated and will raise in a future error of pandas. Value '[0 0 0 ... 1 0 0]' has dtype incompatible with int32, please explicitly cast to a compatible dtype first.
  pandas_df.eval( 'n_towers_40 = (n_towers_40<7)*n_towers_40 + (n_towers_40>=7)*7', inplace=True  )
pandas_df.eval( 'obs_ptbal = 1. - obs_e_pt / obs_hfs_pt', inplace=True )
pandas_df.eval( 'obs_pzbal = 1. - (obs_hfs_Empz + obs_e_Empz)/2./beam_e_e', inplace=True )
pandas_df.head()
has_isr has_fsr tower_sum_40 n_towers_40 eta_pho_closest_to_ebeam e_pho_closest_to_ebeam phi_pho_closest_to_ebeam obs_x obs_y obs_Q2 ... rot_Empz1 rot_Empz2 gen_log_x gen_log_y gen_log_Q2 e_ecal_over_trk_ratio dphi_pho_closest_to_ebeam has_norad obs_ptbal obs_pzbal
0 1 0 0.0 0 0.0 0.0 0.0 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.0 0.0 -2.582836 -4.780699 3.588407 NaN -1.0 False NaN 1.0
1 1 0 0.0 0 0.0 0.0 0.0 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.0 0.0 -4.570547 -0.797988 5.435722 NaN -1.0 False NaN 1.0
2 1 0 0.0 0 0.0 0.0 0.0 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.0 0.0 -4.374308 -2.930975 4.217414 NaN -1.0 False NaN 1.0
3 1 0 0.0 0 0.0 0.0 0.0 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.0 0.0 -5.914076 -0.427778 2.654275 NaN -1.0 False NaN 1.0
4 0 0 0.0 0 0.0 0.0 0.0 [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] [0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0] ... 0.0 0.0 -4.279663 -0.961149 6.287672 NaN -1.0 True NaN 1.0

5 rows × 40 columns

nan_columns = pandas_df.columns[pandas_df.isna().any()].tolist()
print(nan_columns)
['e_ecal_over_trk_ratio', 'obs_ptbal']
pandas_df.columns
Index(['has_isr', 'has_fsr', 'tower_sum_40', 'n_towers_40',
       'eta_pho_closest_to_ebeam', 'e_pho_closest_to_ebeam',
       'phi_pho_closest_to_ebeam', 'obs_x', 'obs_y', 'obs_Q2',
       'from_tlv_gen_Q2', 'from_tlv_gen_x', 'from_tlv_gen_y', 'obs_e_e',
       'obs_e_pz', 'obs_e_pt', 'obs_e_phi', 'obs_hfs_e', 'obs_hfs_pz',
       'obs_hfs_pt', 'obs_hfs_phi', 'obs_dphi', 'Empz', 'obs_e_trk_e',
       'beam_e_e', 'obs_hfs_Empz', 'obs_e_Empz', 'obs_event_Empz', 'rot_pt1',
       'rot_pt2', 'rot_Empz1', 'rot_Empz2', 'gen_log_x', 'gen_log_y',
       'gen_log_Q2', 'e_ecal_over_trk_ratio', 'dphi_pho_closest_to_ebeam',
       'has_norad', 'obs_ptbal', 'obs_pzbal'],
      dtype='object')
pandas_df.dropna(subset=['e_ecal_over_trk_ratio', 'obs_ptbal'], inplace=True)
nan_columns = pandas_df.columns[pandas_df.isna().any()].tolist()
print(nan_columns)
[]
pandas_df.columns
Index(['has_isr', 'has_fsr', 'tower_sum_40', 'n_towers_40',
       'eta_pho_closest_to_ebeam', 'e_pho_closest_to_ebeam',
       'phi_pho_closest_to_ebeam', 'obs_x', 'obs_y', 'obs_Q2',
       'from_tlv_gen_Q2', 'from_tlv_gen_x', 'from_tlv_gen_y', 'obs_e_e',
       'obs_e_pz', 'obs_e_pt', 'obs_e_phi', 'obs_hfs_e', 'obs_hfs_pz',
       'obs_hfs_pt', 'obs_hfs_phi', 'obs_dphi', 'Empz', 'obs_e_trk_e',
       'beam_e_e', 'obs_hfs_Empz', 'obs_e_Empz', 'obs_event_Empz', 'rot_pt1',
       'rot_pt2', 'rot_Empz1', 'rot_Empz2', 'gen_log_x', 'gen_log_y',
       'gen_log_Q2', 'e_ecal_over_trk_ratio', 'dphi_pho_closest_to_ebeam',
       'has_norad', 'obs_ptbal', 'obs_pzbal'],
      dtype='object')

Apply any event selection here.#

pandas_df = pandas_df.query('Empz > 0')

pandas_df = pandas_df.query('obs_event_Empz > 46 and obs_event_Empz < 62')

pandas_df = pandas_df.query('obs_hfs_pt > 0')

# We restrict our study to events with Q2>200 GeV2.
# This kinematic region is well measured, since the electron is scattered into the central regions of the detector.
# However, no single reconstruction method gives optimal performance over the full phase space
pandas_df = pandas_df.query('from_tlv_gen_Q2 > 200')

pandas_df = pandas_df.query('e_ecal_over_trk_ratio > 0')

print('\n\n Number of entries in pandas_df:  %d ' % pandas_df.shape[0] )
 Number of entries in pandas_df:  2027827
pandas_df.head()
has_isr has_fsr tower_sum_40 n_towers_40 eta_pho_closest_to_ebeam e_pho_closest_to_ebeam phi_pho_closest_to_ebeam obs_x obs_y obs_Q2 ... rot_Empz1 rot_Empz2 gen_log_x gen_log_y gen_log_Q2 e_ecal_over_trk_ratio dphi_pho_closest_to_ebeam has_norad obs_ptbal obs_pzbal
23 0 0 24.247692 1 -0.182699 0.144760 2.422777 [0.01528253685683012 0.01956743560731411 0.009... [0.24758446216583252 0.3492734134197235 0.3492... [384.304931640625 694.1551513671875 332.366149... ... -15.735563 43.001450 -4.329937 -1.276337 5.922210 1.071315 0.428013 True 0.060719 -0.101689
36 0 1 13.348120 1 -1.709016 0.566964 -0.436204 [0.0038086669519543648 0.002255246741697192 0.... [0.5914618968963623 0.5583460927009583 0.55834... [228.8004608154297 127.89533233642578 247.3468... ... 5.847350 37.739708 -5.503805 -0.571310 5.453369 0.988650 2.755722 False -0.035760 0.033116
45 0 0 25.104801 1 -0.021559 1.420366 2.370969 [0.013933613896369934 0.01907375641167164 0.00... [0.16881048679351807 0.24822576344013214 0.248... [238.90234375 480.8838806152344 216.0766296386... ... -22.754414 42.132053 -4.499992 -1.604122 5.424370 2.409008 3.302941 True 0.168212 -0.079415
47 0 1 20.143602 1 0.018809 0.729400 -1.816074 [0.0070611536502838135 0.004471470136195421 0.... [0.35332125425338745 0.31747934222221375 0.317... [253.39761352539062 144.1859588623047 267.4420... ... -12.849410 37.633305 -4.799874 -1.136600 5.592010 1.761387 2.691795 False 0.091957 0.035842
56 1 0 32.968731 1 0.195189 0.114277 0.189013 [0.0923699364066124 0.11394614726305008 0.1276... [0.09356395900249481 0.0695156678557396 0.0695... [877.8008422851562 804.52490234375 901.0893554... ... -32.666924 38.093636 -1.782004 -2.935359 6.801494 0.950580 3.264253 False 0.052082 0.024048

5 rows × 40 columns

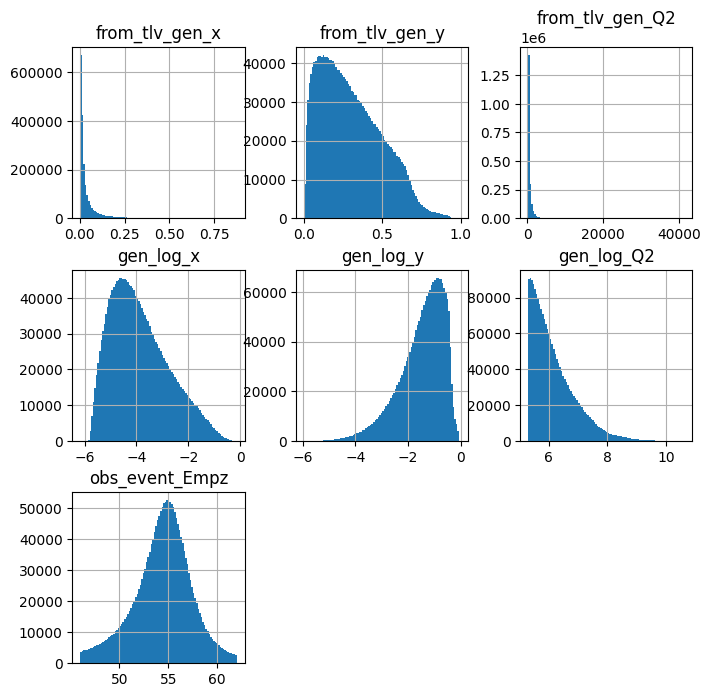

pandas_df.hist( figsize=(8,8), bins=100, column=['from_tlv_gen_x','from_tlv_gen_y','from_tlv_gen_Q2',
                        'gen_log_x','gen_log_y','gen_log_Q2','obs_event_Empz',
                        ])
plt.show()
_images/fa34cdfae974672c157282be124f17fa426d251992e5df2fbf422a5d3046068f.png

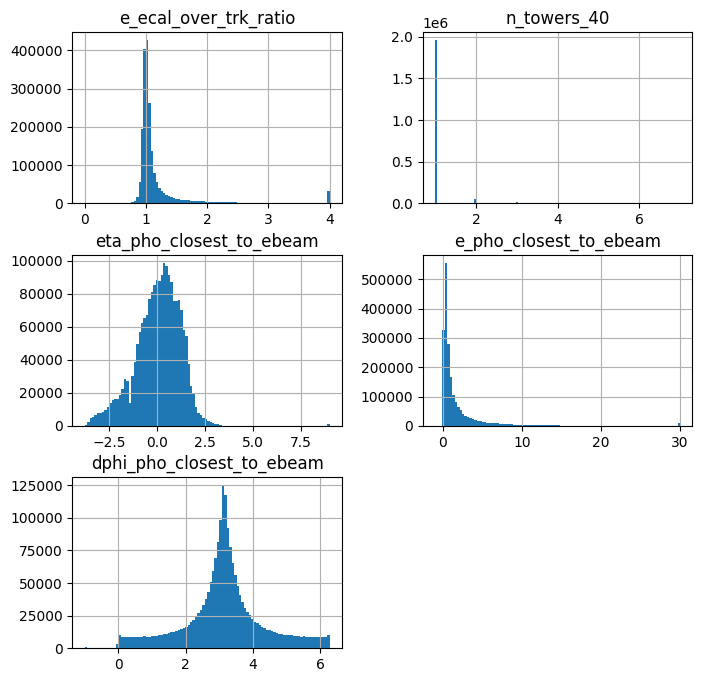

pandas_df.hist( figsize=(8,8), bins=100, column=[
                        'e_ecal_over_trk_ratio','n_towers_40',
                        'eta_pho_closest_to_ebeam','e_pho_closest_to_ebeam', 'dphi_pho_closest_to_ebeam'])

plt.show()
_images/c619954aaede91dc99d5ff32c5c5323b708bc61c89bff9db3508a6f492a1d334.png

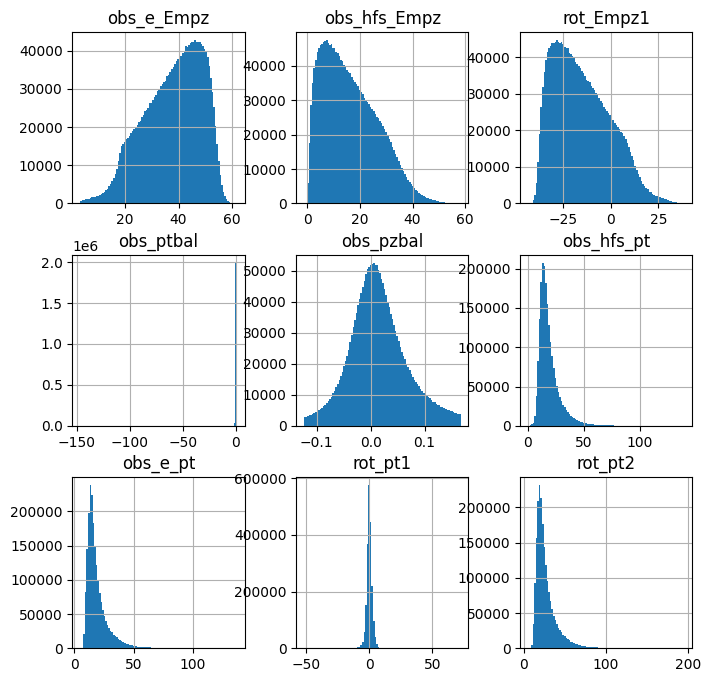

pandas_df.hist( figsize=(8,8), bins=100, column=[
    'obs_e_Empz','obs_hfs_Empz',
    'rot_Empz1',
#    'rot_Empz2',
    'obs_ptbal','obs_pzbal',
    'obs_hfs_pt','obs_e_pt',
    'rot_pt1','rot_pt2'] )

plt.show()
_images/8cd0a67e247f4c453bf52c20d96eebf602236f5cb80e6c19d9d7a8a2edd2afef.png

Set up machine learning#

# CELL 1: Imports and GPU setup
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torch.utils.data import TensorDataset, DataLoader
import numpy as np
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
from pickle import dump
import os

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
print("Using device:", device)
Using device: cuda
# Let's select the features that are used in the paper

sel_list =  ('e_ecal_over_trk_ratio','n_towers_40','eta_pho_closest_to_ebeam','e_pho_closest_to_ebeam','dphi_pho_closest_to_ebeam','obs_e_pz','obs_e_e','obs_hfs_pz','obs_hfs_e', 'rot_pt1', 'rot_Empz1', 'rot_pt2', 'obs_pzbal', 'obs_ptbal', 'obs_dphi')
sel_list = list(sel_list)

target_list = ('gen_log_x','gen_log_Q2','gen_log_y')
target_list = list(target_list)

sel_X = pandas_df[sel_list]
target_y = pandas_df[target_list]

sub_df = sel_X[: 1000]
corr_matrix = sub_df.corr()

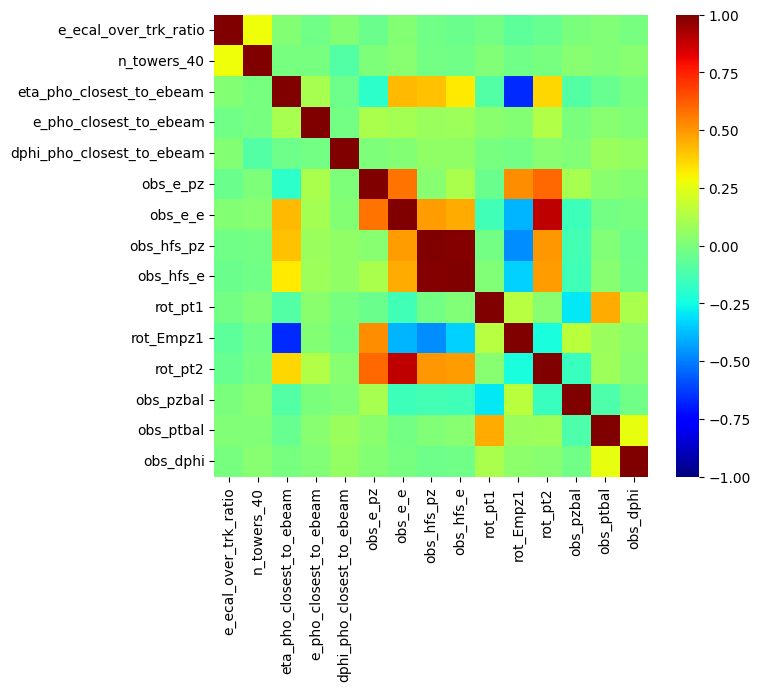

plt.figure(figsize=(7, 6))

sns.heatmap(corr_matrix, cmap='jet', vmin=-1, vmax=1,
            annot=False, fmt='.2f', xticklabels=sub_df.columns, yticklabels=sub_df.columns)
plt.show()
_images/c5b45ec241e8f5502a5d2bbfc5c497f21632fb73e166c0b405d917b1835a8e08.png
X = sel_X.values

Y_r = target_y.values

GY = pandas_df['from_tlv_gen_y'].to_numpy()

scalerX = StandardScaler()
scalerX.fit(X)
X = scalerX.transform(X)

scalerY = StandardScaler()
scalerY.fit(Y_r)
Y_r = scalerY.transform(Y_r)

#-- Save the scaler transformations!  These are essential when reusing the training with a different dataset.

try:
    os.mkdir( '%s-scalers' % training_extname )
except:
    print('\n  Dir %s-scalers already exists\n\n' % training_extname )


print('\n\n Saving the input and learning target scalers:\n')
print('    %s-scalers/input_scaler.pkl' % training_extname )
print('    %s-scalers/target_scaler.pkl' % training_extname )

dump( scalerX, open('%s-scalers/input_scaler.pkl' % training_extname , 'wb'))
dump( scalerY, open('%s-scalers/target_scaler.pkl' % training_extname , 'wb'))

X_train, X_test, Y_r_train, Y_r_test, GY_train, GY_test = train_test_split( X,  Y_r, GY,  test_size=0.2) #80/20 split
  Dir /content/drive/My Drive/TMP/training_h1_reg_hugs25_v1-scalers already exists




 Saving the input and learning target scalers:

    /content/drive/My Drive/TMP/training_h1_reg_hugs25_v1-scalers/input_scaler.pkl
    /content/drive/My Drive/TMP/training_h1_reg_hugs25_v1-scalers/target_scaler.pkl
print(type(X),np.shape(X))
<class 'numpy.ndarray'> (2027827, 15)
print(np.shape(X_train),np.shape(Y_r_train))
print(np.shape(X_test),np.shape(Y_r_test))
print("GY_train shape: ",np.shape(GY_train))
print("GY_test shape: ",np.shape(GY_test))
(1622261, 15) (1622261, 3)
(405566, 15) (405566, 3)
GY_train shape:  (1622261,)
GY_test shape:  (405566,)

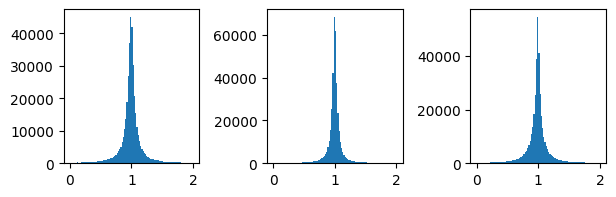

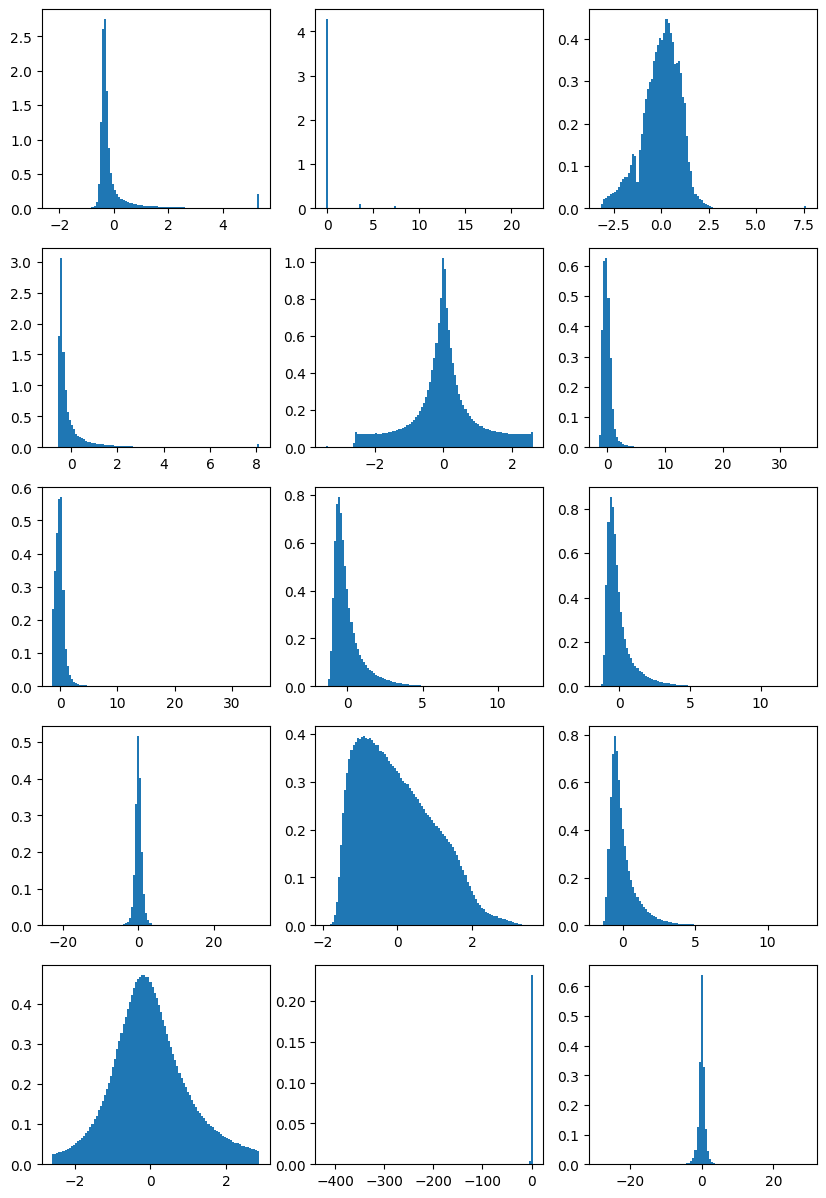

fig, ax = plt.subplots(5, 3, figsize=(10, 15))

for i in range(5):
    for j in range(3):
        idx = i * 3 + j
        if idx < X.shape[1]:  # check if we're still within the number of columns in X
            ax[i][j].hist(X[:, idx], density=True, bins=100)
        else:
            ax[i][j].axis('off')  # turn off remaining axes

plt.show()
_images/da7acc129a3f4a92304de8a760853486a67049c0ea88f91f4b004a1f5043026f.png

Set up the regression network#

class RegressionNet(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(15, 64)
        #self.drop1 = nn.Dropout(dropout_setval)
        self.fc2 = nn.Linear(64, 128)
        self.fc3 = nn.Linear(128, 512)
        self.fc4 = nn.Linear(512, 1024)
        self.fc5 = nn.Linear(1024, 512)
        self.fc6 = nn.Linear(512, 128)
        self.fc7 = nn.Linear(128, 64)
        self.fc_out = nn.Linear(64, 3)

    def forward(self, x):
        x = F.relu(self.fc1(x))
        #x = self.drop1(x)
        x = F.selu(self.fc2(x))
        x = F.selu(self.fc3(x))
        x = F.selu(self.fc4(x))
        x = F.selu(self.fc5(x))
        x = F.selu(self.fc6(x))
        x = F.selu(self.fc7(x))
        return self.fc_out(x)

model = RegressionNet().to(device)
optimizer = optim.Adam(model.parameters(), lr=learning_rate_setval_reg, amsgrad=amsgrad_setval)
loss_fn = nn.HuberLoss(delta=delta_setval)
# the Huber loss is used in robust regression,
# less sensitive to outliers in data than the squared error loss
%%time
# Training loop with early stopping

best_model_name = saving_dir + "best_model.pt"

early_stop_patience = 5 # this value is to quickly run the code and can be made larger

train_data = TensorDataset(torch.tensor(X_train, dtype=torch.float32),
                           torch.tensor(Y_r_train, dtype=torch.float32))
val_data = TensorDataset(torch.tensor(X_test, dtype=torch.float32),
                         torch.tensor(Y_r_test, dtype=torch.float32))

train_loader = DataLoader(train_data, batch_size=batch_size_setval, shuffle=True)
val_loader = DataLoader(val_data, batch_size=batch_size_setval)

best_val_loss = float('inf')
patience_counter = 0

from tqdm import tqdm
import time

l_train_losses = []
l_val_losses = []

for epoch in range(max_epochs):
    print(f"\n================Epoch {epoch+1}/{max_epochs}")
    model.train()

    train_losses = []
    val_losses = []
    start_time = time.time()

    train_loader_iter = tqdm(train_loader, total=len(train_loader), desc="", leave=False)

    for xb, yb in train_loader_iter:
        xb, yb = xb.to(device), yb.to(device)
        optimizer.zero_grad()
        pred = model(xb)
        loss = loss_fn(pred, yb)
        loss.backward()       # computes gradients
        optimizer.step()      # updates model parameters with gradients
        optimizer.zero_grad() # resets all gradients to zero before the next backpropagation step
        train_losses.append(loss.item())

    # Validation
    model.eval()
    with torch.no_grad():
        for xb, yb in val_loader:
            xb, yb = xb.to(device), yb.to(device)
            pred = model(xb)
            val_loss = loss_fn(pred, yb)
            val_losses.append(val_loss.item())

    avg_train_loss = np.mean(train_losses)
    avg_val_loss = np.mean(val_losses)

    l_train_losses.append(avg_train_loss)
    l_val_losses.append(avg_val_loss)

    duration = time.time() - start_time

    print(f"{len(train_loader)} batches [{duration:.0f}s] - loss: {avg_train_loss:1.6f} - val_loss: {avg_val_loss:1.6f}")



    # Early stopping logic
    if avg_val_loss < best_val_loss:
        best_val_loss = avg_val_loss
        torch.save(model.state_dict(), best_model_name)
        patience_counter = 0
    else:
        patience_counter += 1
        if patience_counter >= early_stop_patience:
            print("Early stopping triggered.")
            break
================Epoch 1/50

1585 batches [25s] - loss: 0.000565 - val_loss: 0.000571

================Epoch 2/50

1585 batches [28s] - loss: 0.000563 - val_loss: 0.000564

================Epoch 3/50

1585 batches [29s] - loss: 0.000559 - val_loss: 0.000559

================Epoch 4/50

1585 batches [25s] - loss: 0.000557 - val_loss: 0.000558

================Epoch 5/50

1585 batches [25s] - loss: 0.000555 - val_loss: 0.000554

================Epoch 6/50

1585 batches [25s] - loss: 0.000553 - val_loss: 0.000560

================Epoch 7/50

1585 batches [25s] - loss: 0.000550 - val_loss: 0.000565

================Epoch 8/50

1585 batches [25s] - loss: 0.000548 - val_loss: 0.000550

================Epoch 9/50

1585 batches [25s] - loss: 0.000546 - val_loss: 0.000548

================Epoch 10/50

1585 batches [25s] - loss: 0.000545 - val_loss: 0.000549

================Epoch 11/50

1585 batches [25s] - loss: 0.000542 - val_loss: 0.000547

================Epoch 12/50

1585 batches [25s] - loss: 0.000541 - val_loss: 0.000546

================Epoch 13/50

1585 batches [24s] - loss: 0.000539 - val_loss: 0.000550

================Epoch 14/50

1585 batches [24s] - loss: 0.000537 - val_loss: 0.000543

================Epoch 15/50

1585 batches [24s] - loss: 0.000536 - val_loss: 0.000538

================Epoch 16/50

1585 batches [25s] - loss: 0.000535 - val_loss: 0.000544

================Epoch 17/50

1585 batches [25s] - loss: 0.000533 - val_loss: 0.000554

================Epoch 18/50

1585 batches [25s] - loss: 0.000531 - val_loss: 0.000551

================Epoch 19/50

1585 batches [25s] - loss: 0.000530 - val_loss: 0.000540

================Epoch 20/50

1585 batches [25s] - loss: 0.000529 - val_loss: 0.000531

================Epoch 21/50

1585 batches [25s] - loss: 0.000528 - val_loss: 0.000528

================Epoch 22/50

1585 batches [24s] - loss: 0.000526 - val_loss: 0.000528

================Epoch 23/50

1585 batches [24s] - loss: 0.000525 - val_loss: 0.000526

================Epoch 24/50

1585 batches [25s] - loss: 0.000524 - val_loss: 0.000537

================Epoch 25/50

1585 batches [25s] - loss: 0.000523 - val_loss: 0.000533

================Epoch 26/50

1585 batches [25s] - loss: 0.000522 - val_loss: 0.000522

================Epoch 27/50

1585 batches [24s] - loss: 0.000521 - val_loss: 0.000524

================Epoch 28/50

1585 batches [25s] - loss: 0.000520 - val_loss: 0.000527

================Epoch 29/50

1585 batches [25s] - loss: 0.000519 - val_loss: 0.000523

================Epoch 30/50

1585 batches [24s] - loss: 0.000518 - val_loss: 0.000529

================Epoch 31/50

1585 batches [24s] - loss: 0.000517 - val_loss: 0.000517

================Epoch 32/50

1585 batches [24s] - loss: 0.000516 - val_loss: 0.000521

================Epoch 33/50

1585 batches [25s] - loss: 0.000515 - val_loss: 0.000518

================Epoch 34/50

1585 batches [25s] - loss: 0.000515 - val_loss: 0.000515

================Epoch 35/50

1585 batches [25s] - loss: 0.000513 - val_loss: 0.000516

================Epoch 36/50

1585 batches [25s] - loss: 0.000513 - val_loss: 0.000525

================Epoch 37/50

1585 batches [25s] - loss: 0.000512 - val_loss: 0.000521

================Epoch 38/50

1585 batches [25s] - loss: 0.000511 - val_loss: 0.000511

================Epoch 39/50

1585 batches [25s] - loss: 0.000511 - val_loss: 0.000513

================Epoch 40/50

1585 batches [24s] - loss: 0.000510 - val_loss: 0.000513

================Epoch 41/50

1585 batches [25s] - loss: 0.000509 - val_loss: 0.000517

================Epoch 42/50

1585 batches [25s] - loss: 0.000508 - val_loss: 0.000516

================Epoch 43/50

1585 batches [25s] - loss: 0.000508 - val_loss: 0.000512
Early stopping triggered.
CPU times: user 17min 28s, sys: 7.19 s, total: 17min 35s
Wall time: 17min 50s

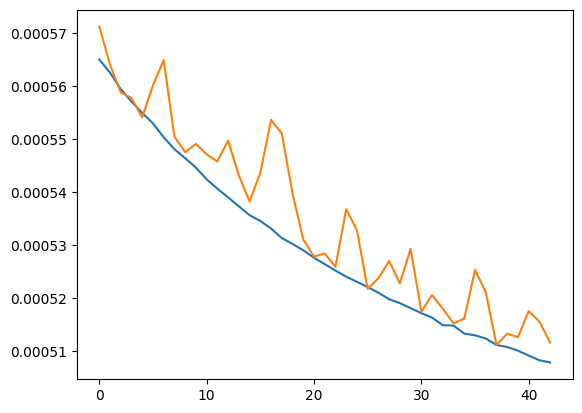

plt.plot(l_train_losses)
plt.plot(l_val_losses)
[<matplotlib.lines.Line2D at 0x7a1f80727b90>]
_images/929a2c65c547ec47bcdcf992f20c861a4c49cd75870129288544bc0eafcb540a.png
# Save the model weights
filepath_model = training_extname + "_regression.pt"
torch.save(model.state_dict(), filepath_model)

# Run predictions on test set (already a NumPy array)
model.eval()
with torch.no_grad():
    X_test_tensor = torch.tensor(X_test, dtype=torch.float32).to(device)
    mypreds_r = model(X_test_tensor).cpu().numpy()
import matplotlib.pyplot as plt

fig, ax = plt.subplots(1, 3, figsize=(7, 2))

# Avoid divide-by-zero if any target is near 0
eps = 1e-8

ax[0].hist(mypreds_r[:, 0] / (Y_r_test[:, 0] + eps), bins=100, range=[0, 2])
ax[1].hist(mypreds_r[:, 1] / (Y_r_test[:, 1] + eps), bins=100, range=[0, 2])
ax[2].hist(mypreds_r[:, 2] / (Y_r_test[:, 2] + eps), bins=100, range=[0, 2])

plt.subplots_adjust(wspace=0.5)
plt.show()
_images/d5e43dfbf2f7d3530c790e25338f10942c4e6e47760e41f546ac7c6e5e9a26c6.png

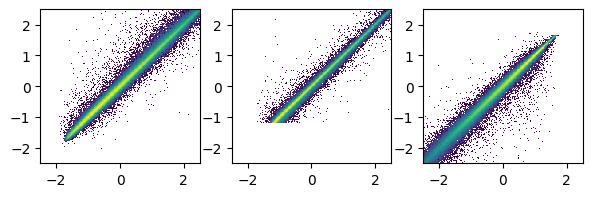

fig,ax = plt.subplots(1,3,figsize=(7,2))
ax[0].hist2d(mypreds_r[:,0],Y_r_test[:,0],bins=200, norm=mpl.colors.LogNorm(), range=([-2.5,2.5],[-2.5,2.5]))
ax[1].hist2d(mypreds_r[:,1],Y_r_test[:,1],bins=200, norm=mpl.colors.LogNorm(), range=([-2.5,2.5],[-2.5,2.5]))
ax[2].hist2d(mypreds_r[:,2],Y_r_test[:,2],bins=200, norm=mpl.colors.LogNorm(), range=([-2.5,2.5],[-2.5,2.5]))
plt.show()
_images/4c4d1a254c611bcf71121ec2f7a8265ba48f46cab602a0c65f59ffcb0147f718.png

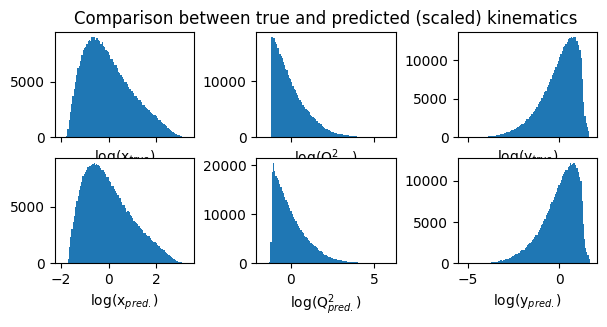

fig,ax = plt.subplots(2,3,figsize=(7,3), sharex='col')

# define titles and x-labels
true_labels = ['log(x$_{true})$', 'log(Q$^2_{true})$', 'log(y$_{true})$']
pred_labels = ['log(x$_{pred.})$', 'log(Q$^2_{pred.})$', 'log(y$_{pred.})$']

ax[0][1].set_title("Comparison between true and predicted (scaled) kinematics") # title for the first row

for i in range(3):
    ax[0][i].hist(Y_r_test[:,i], bins=100)
    ax[0][i].set_xlabel(true_labels[i]) # x-label for the upper plots

    ax[1][i].hist(mypreds_r[:,i], bins=100)
    ax[1][i].set_xlabel(pred_labels[i]) # x-label for the lower plots

plt.subplots_adjust(wspace=0.45)
plt.show()
_images/b154f80b426faa286627bcaf44085400f928a613776388fb4692c83e5f46ef9b.png
# Inverse transform to their unscaled values (i.e., before standard scaling)

inv_trans_Y = scalerY.inverse_transform(Y_r_test)
inv_trans_pred = scalerY.inverse_transform(mypreds_r)
true_vals = np.exp( inv_trans_Y)
pred_vals = np.exp( inv_trans_pred)

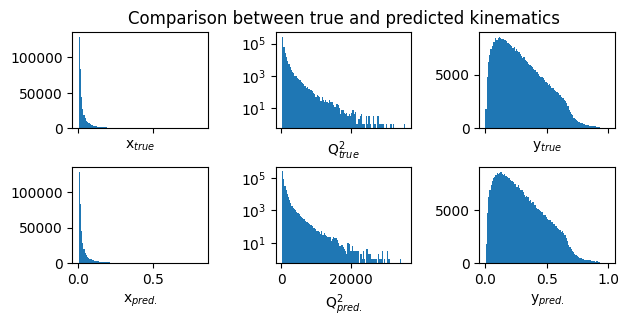

fig,ax = plt.subplots(2,3,figsize=(7,3), sharex='col')

# define titles and x-labels
true_labels = ['x$_{true}$', 'Q$^2_{true}$', 'y$_{true}$']
pred_labels = ['x$_{pred.}$', 'Q$^2_{pred.}$', 'y$_{pred.}$']

ax[0][1].set_title("Comparison between true and predicted kinematics") # title for the first row

for i in range(3):
    ax[0][i].hist(true_vals[:,i], bins=100)
    ax[0][i].set_xlabel(true_labels[i]) # x-label for the upper plots

    ax[1][i].hist(pred_vals[:,i], bins=100)
    ax[1][i].set_xlabel(pred_labels[i]) # x-label for the lower plots

ax[0][1].set_yscale('log')
ax[1][1].set_yscale('log')

plt.subplots_adjust(hspace=0.4)
plt.subplots_adjust(wspace=0.5)
plt.show()
_images/ea46acc3cce787b5d6403a7363a9f34217019d234f1427bbf7deef43c0362a7f.png

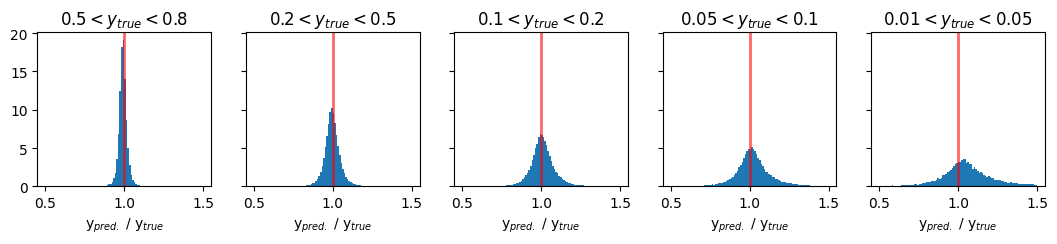

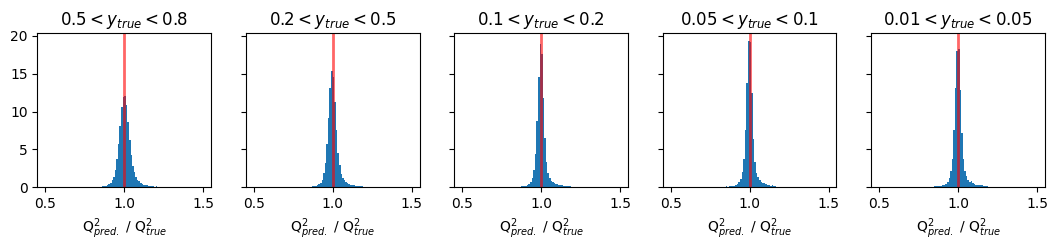

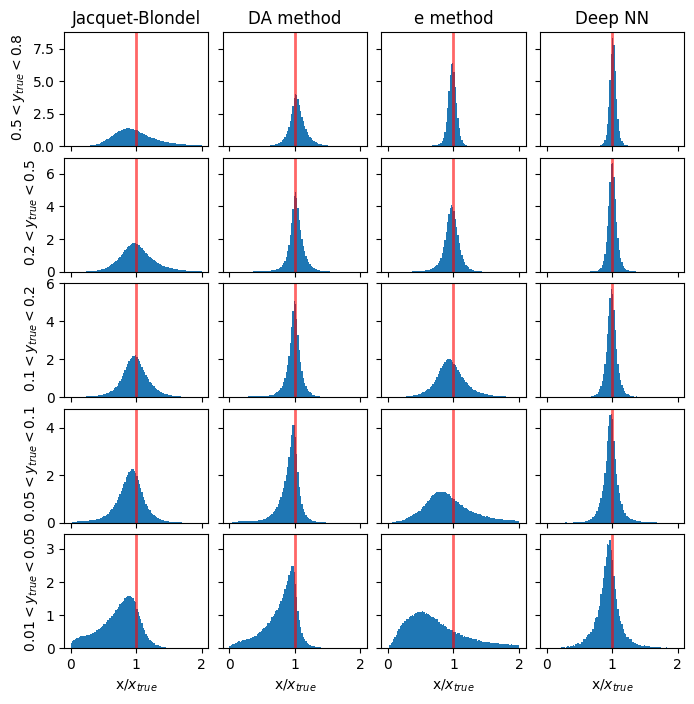

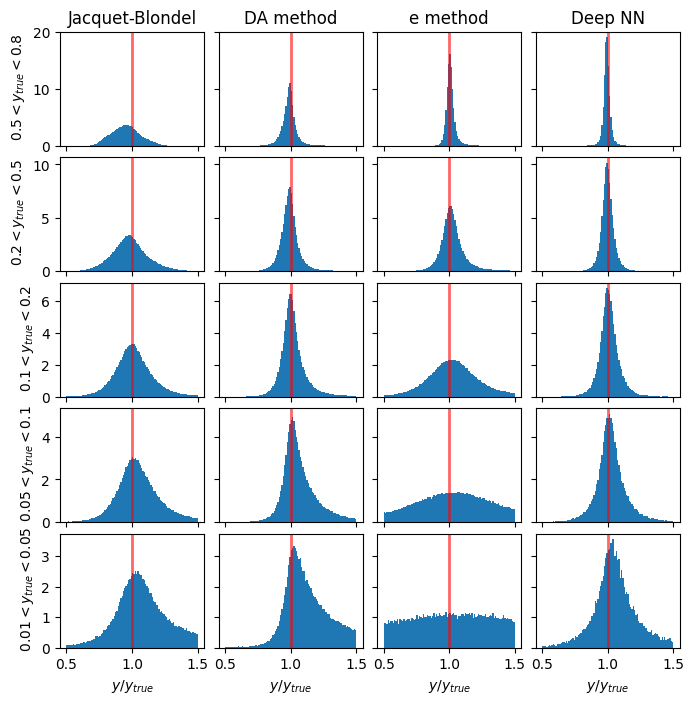

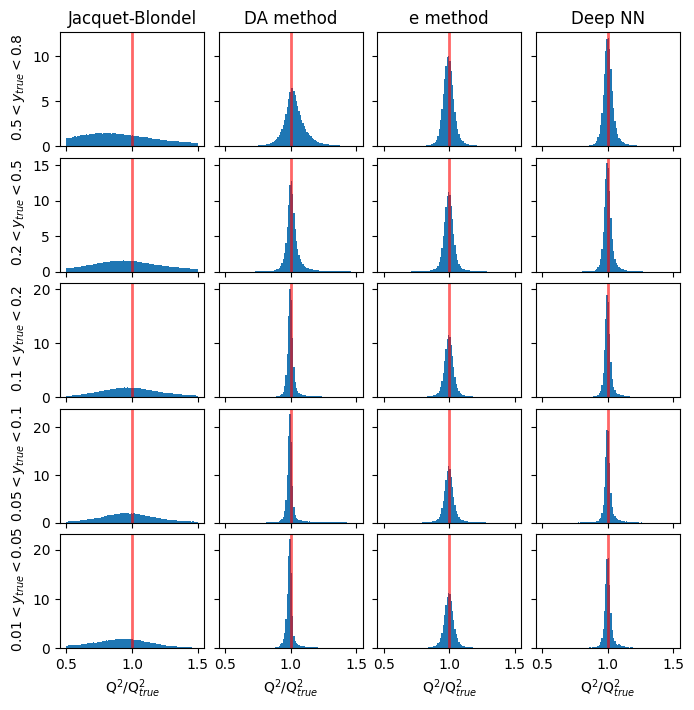

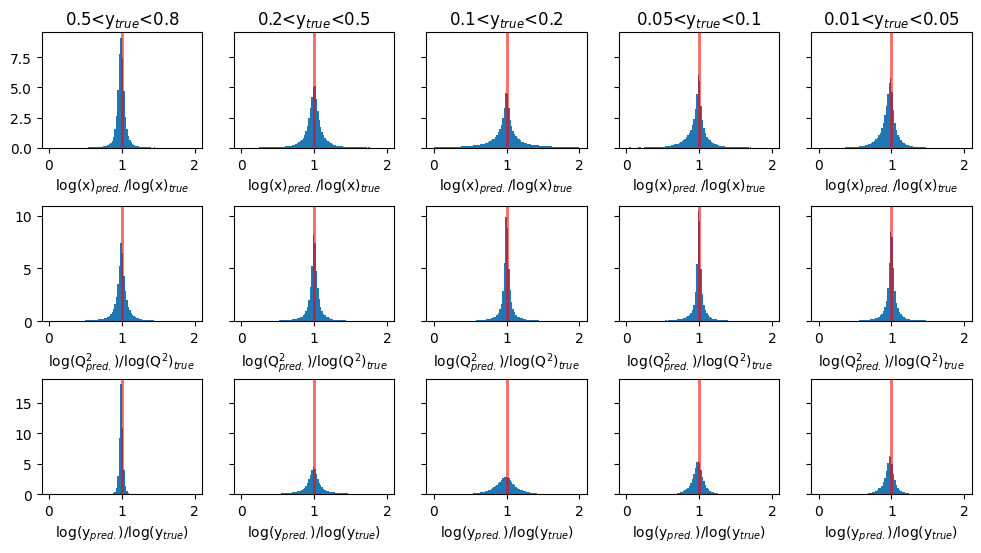

Plots of Ratio(pred/true) for target variables : transformed log(x), log(y), and log(Q2)#

fig, ax = plt.subplots(3,5, figsize=(12,6), sharey='row')

titles = ['log(x)$_{pred.}$/log(x)$_{true}$', 'log(Q$^2_{pred.}$)/log(Q$^2$)$_{true}$', 'log(y$_{pred.}$)/log(y$_{true}$)']
y_ranges = [
    (0.5, 0.8),
    (0.2, 0.5),
    (0.1, 0.2),
    (0.05, 0.1),
    (0.01, 0.05)
]

for i in range(3):
    for j in range(5):
        y_min, y_max = y_ranges[j]
        mask = (GY_test > y_min)*(GY_test < y_max)
        ax[i][j].hist(mypreds_r[:,i][mask]/Y_r_test[mask][:,i],
                      density=True,bins=100,range=(0,2))
        ax[i][j].axvline(1.0, color='red', lw=2, alpha=0.6)
        ax[i][j].set_xlabel(titles[i])  # set column x-label

        if i == 0:
            ax[i][j].set_title(f'{y_min}<y$_{{true}}$<{y_max}')

plt.subplots_adjust(hspace=0.5)
plt.show()
_images/fc98d2d54aa570fd98d57f3677b882fdff281da75d845640793557651f1e6613.png

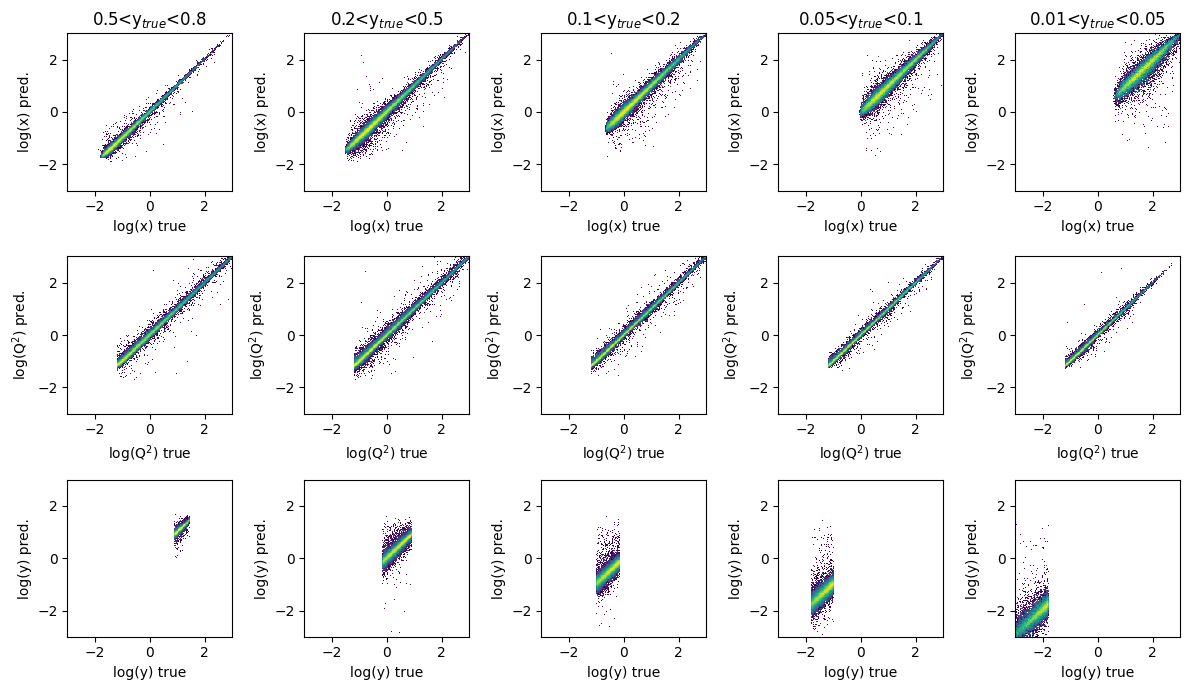

fig, ax = plt.subplots(3, 5, figsize=(12, 7))

titles = ['log(x)', 'log(Q$^2$)', 'log(y)']
y_ranges = [
    (0.5, 0.8),
    (0.2, 0.5),
    (0.1, 0.2),
    (0.05, 0.1),
    (0.01, 0.05)
]

for i in range(3):
    for j in range(5):
        y_min, y_max = y_ranges[j]
        mask = (GY_test > y_min)*(GY_test < y_max)
        ax[i][j].hist2d(Y_r_test[mask][:,i],
                        mypreds_r[:,i][mask],
                        density=True,bins=200,range=([-3,3],[-3,3]),
                        norm=mpl.colors.LogNorm())

        if i == 0:
            ax[i][j].set_title(f'{y_min}<y$_{{true}}$<{y_max}')

        ax[i][j].set_ylabel(titles[i] + ' pred.')
        ax[i][j].set_xlabel(titles[i] + ' true')

plt.tight_layout()
plt.show()

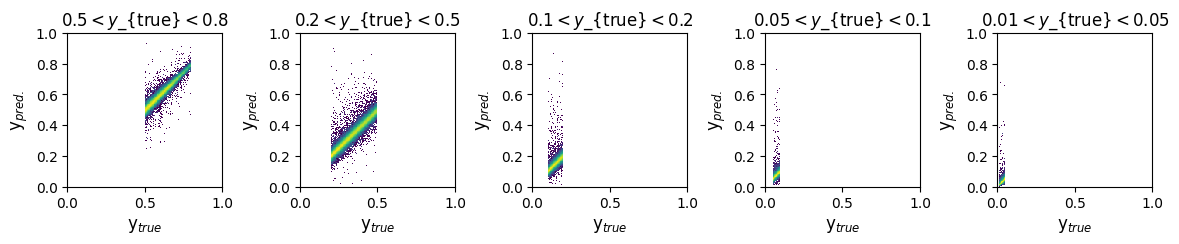

_images/faf7e5a317aa8fab4e43f585bed022f8941cd4ef431d38b5e913c8ec6b7518a0.png

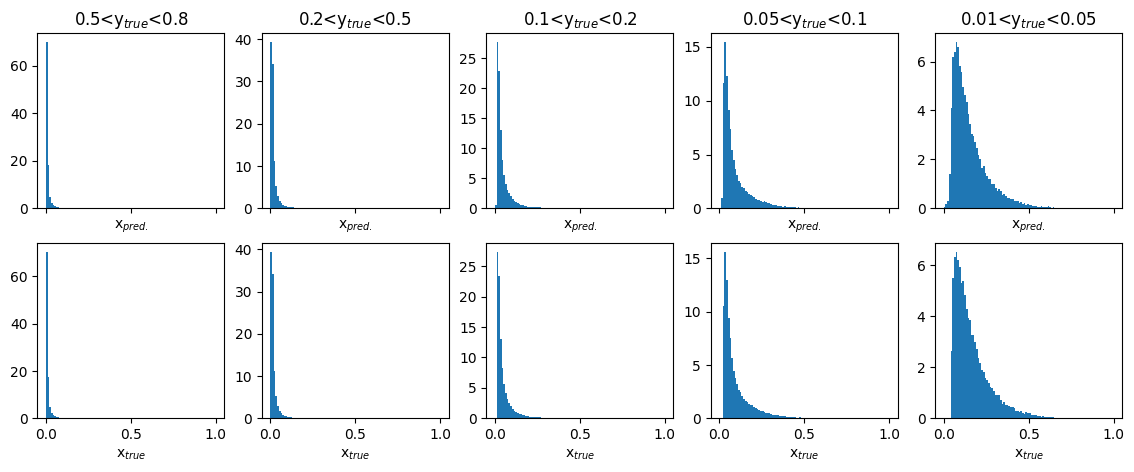

Plots of predicted and true physics variable : x#

fig,ax = plt.subplots(2,5,figsize=(14,5),sharex='col')

y_ranges = [(0.5, 0.8),(0.2, 0.5),(0.1, 0.2),(0.05, 0.1),(0.01, 0.05)]

for i in range(2):
    for j in range(5):
        y_min, y_max = y_ranges[j]
        mask = (GY_test > y_min)*(GY_test < y_max)
        if i == 0:
            ax[i][j].hist(pred_vals[:,0][mask],density=True,bins=100,range=(0,1))
            ax[i][j].set_title(f'{y_min}<y$_{{true}}$<{y_max}')
            ax[i][j].set_xlabel('x$_{pred.}$')
        else:
            ax[i][j].hist(true_vals[:,0][mask],density=True,bins=100,range=(0,1))
            ax[i][j].set_xlabel('x$_{true}$')

plt.show()
_images/9a258b6cf13f9bb5ecf48cbcd703a8a9faeb8b9c08d8e14320786b9933d1bf67.png

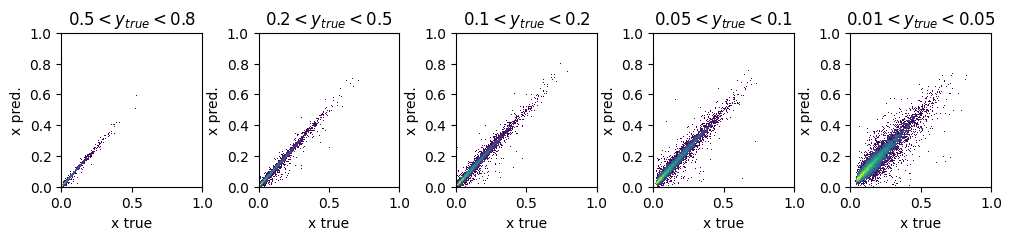

fig, ax = plt.subplots(1,5, figsize=(12,2))

y_ranges = [(0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)]
titles = ['$0.5<y_{true}<0.8$', '$0.2<y_{true}<0.5$', '$0.1<y_{true}<0.2$', '$0.05<y_{true}<0.1$', '$0.01<y_{true}<0.05$']

for i in range(5):
    y_min, y_max = y_ranges[i]
    mask = (GY_test > y_min) * (GY_test < y_max)
    ax[i].hist2d(true_vals[:,0][mask], pred_vals[:,0][mask],
                 density=True, bins=200, range=([0,1],[0,1]), norm=mpl.colors.LogNorm())
    ax[i].set_title(titles[i])
    ax[i].set_xlabel('x true')
    ax[i].set_ylabel('x pred.')


plt.subplots_adjust(wspace=0.4)

plt.show()
_images/474a2a1fa085b8cd78d3340f070d4eaa4101b752983902e00e7a8b24a97bd2f6.png

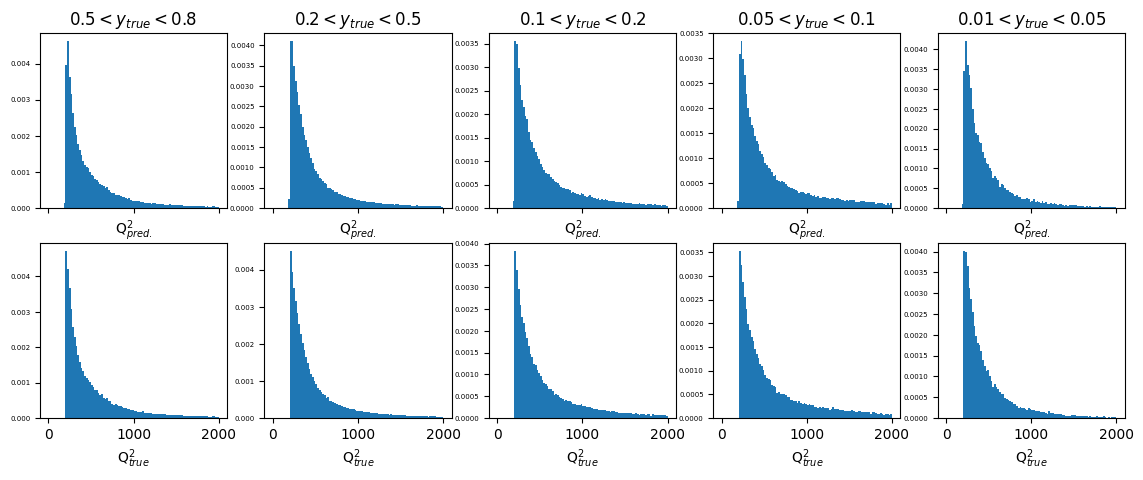

Plots of predicted and true physics variable : Q2#

fig, ax = plt.subplots(2, 5, figsize=(14, 5), sharex='col')

y_ranges = [(0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)]
xmax = 2000
titles = ['$0.5<y_{true}<0.8$', '$0.2<y_{true}<0.5$', '$0.1<y_{true}<0.2$', '$0.05<y_{true}<0.1$', '$0.01<y_{true}<0.05$']
x_labels = ['Q$^{2}_{pred.}$', 'Q$^{2}_{true}$']

for i in range(2):
    for j in range(5):
        y_min, y_max = y_ranges[j]
        mask = (GY_test > y_min)*(GY_test < y_max)
        ax[i][j].hist(pred_vals[:,1][mask] if i == 0 else true_vals[:,1][mask],
                      density=True, bins=100, range=(0, xmax))
        if i==0:
          ax[i][j].set_title(titles[j])
        ax[i][j].set_xlabel(x_labels[i])
        ax[i][j].tick_params(axis='y', labelsize=5)  # adjust the fontsize of y-axis

plt.show()
_images/feb292232995bc9cbbc5d7ebd45078900cd39a7116050909daf65ac4e0560a09.png

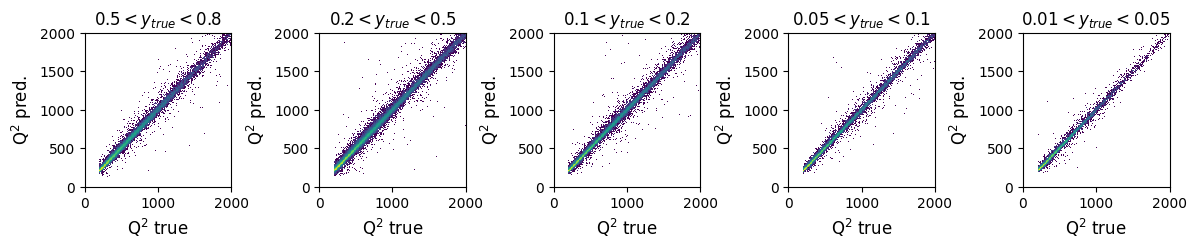

fig, ax = plt.subplots(1, 5, figsize=(14, 2))
axis_max = 2000

y_ranges = [(0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)]
titles = ['$0.5 < y_{true} < 0.8$', '$0.2 < y_{true} < 0.5$', '$0.1 < y_{true} < 0.2$', '$0.05 < y_{true} < 0.1$', '$0.01 < y_{true} < 0.05$']
x_label = 'Q$^{2}$ true'
y_label = 'Q$^{2}$ pred.'

for i in range(5):
    y_min, y_max = y_ranges[i]
    mask = (GY_test > y_min) * (GY_test < y_max)
    ax[i].hist2d(true_vals[:, 1][mask], pred_vals[:, 1][mask],
                 density=True, bins=200, range=([0, axis_max], [0, axis_max]), norm=mpl.colors.LogNorm())
    ax[i].set_title(titles[i])
    ax[i].set_ylabel('Q$^{2}$ pred.')
    ax[i].set_xlabel(x_label)
    ax[i].set_xlabel(x_label, fontsize=12)
    ax[i].set_ylabel(y_label, fontsize=12)

plt.subplots_adjust(wspace=0.6)
plt.show()
_images/2b3c5d1c5e146d1058ba019186ba8ebc649b9f948171cea155b719f0b873f4f4.png

Plots of predicted and true physics variable : y#

fig, ax = plt.subplots(2, 5, figsize=(14, 5), sharex='col')
xmax = 1

y_ranges = [(0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)]
titles = ['$0.5 < y_{true} < 0.8$', '$0.2 < y_{true} < 0.5$', '$0.1 < y_{true} < 0.2$', '$0.05 < y_{true} < 0.1$', '$0.01 < y_{true} < 0.05$']
x_label = ['y$_{pred.}$','y$_{true}$']

for i in range(5):
    y_min, y_max = y_ranges[i]
    mask = (GY_test > y_min) * (GY_test < y_max)
    ax[0][i].hist(pred_vals[:, 2][mask], density=True, bins=100, range=(0, xmax))
    ax[1][i].hist(true_vals[:, 2][mask], density=True, bins=100, range=(0, xmax))
    ax[0][i].set_title(titles[i])
    ax[0][i].set_xlabel(x_label[0])
    ax[1][i].set_xlabel(x_label[1])

plt.show()
_images/6cfe0e20fd1b7b971a52982c1693e1bbe017131ba85ca7c5e3af59f56c6b4b18.png
fig, ax = plt.subplots(1, 5, figsize=(14, 2))
axis_max = 1

y_ranges = [(0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)]
titles = ['$0.5 < y$_{true}$ < 0.8$', '$0.2 < y$_{true}$ < 0.5$', '$0.1 < y$_{true}$ < 0.2$', '$0.05 < y$_{true}$ < 0.1$', '$0.01 < y$_{true}$ < 0.05$']
x_label = 'y$_{true}$'
y_label = 'y$_{pred.}$'

for i in range(5):
    y_min, y_max = y_ranges[i]
    mask = (GY_test > y_min) * (GY_test < y_max)
    ax[i].hist2d(true_vals[:, 2][mask], pred_vals[:, 2][mask], density=True, bins=200, range=([0, axis_max], [0, axis_max]), norm=mpl.colors.LogNorm())
    ax[i].set_title(titles[i])
    ax[i].set_xlabel(x_label)
    ax[i].set_ylabel(y_label)
    ax[i].set_xlabel(x_label, fontsize=12)
    ax[i].set_ylabel(y_label, fontsize=12)

plt.subplots_adjust(wspace=0.5)
plt.show()
_images/f8659c9069af9b2530679a11fa12c5825decb2d700addf849572cb0f808d0e8e.png

Plots of pred/true of physics variable x#

fig, ax = plt.subplots(1, 5, figsize=(13, 2), sharey='row')
xmin = 0.5
xmax = 1.5
y_ranges = [(0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)]
titles = ['$0.5 < y_{true} < 0.8$', '$0.2 < y_{true} < 0.5$', '$0.1 < y_{true} < 0.2$', '$0.05 < y_{true} < 0.1$', '$0.01 < y_{true} < 0.05$']

for i in range(5):
    y_min, y_max = y_ranges[i]
    mask = (GY_test > y_min) * (GY_test < y_max)
    ax[i].hist(pred_vals[:, 0][mask] / true_vals[:, 0][mask], density=True, bins=100, range=(xmin, xmax))
    ax[i].set_title(titles[i])
    ax[i].axvline(1.0, color='red', lw=2, alpha=0.6)
    ax[i].set_xlabel('x$_{pred.}$ / x$_{true}$')

plt.show()
_images/7f1bb3eab5bd586b44fa91522fe0d17fec37b4316a7d372b1b653cbe699dd554.png

Plots of pred/true of physics variable Q2#

fig, ax = plt.subplots(1, 5, figsize=(13, 2), sharey='row')
xmin = 0.5
xmax = 1.5
y_ranges = [(0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)]
titles = ['$0.5 < y_{true} < 0.8$', '$0.2 < y_{true} < 0.5$', '$0.1 < y_{true} < 0.2$', '$0.05 < y_{true} < 0.1$', '$0.01 < y_{true} < 0.05$']

for i in range(5):
    y_min, y_max = y_ranges[i]
    mask = (GY_test > y_min) * (GY_test < y_max)
    ax[i].hist(pred_vals[:, 1][mask] / true_vals[:, 1][mask], density=True, bins=100, range=(xmin, xmax))
    ax[i].set_title(titles[i])
    ax[i].axvline(1.0, color='red', lw=2, alpha=0.6)
    ax[i].set_xlabel('Q$^{2}_{pred.}$ / Q$^{2}_{true}$')

plt.show()
_images/5ec3e1421a69269614c8ab74a257213928752274ac0a1768939b1aa5e17a7dd6.png

Plots of pred/true of physics variable y#

fig, ax = plt.subplots(1, 5, figsize=(13, 2), sharey='row')
xmin = 0.5
xmax = 1.5
y_ranges = [(0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)]
titles = ['$0.5 < y_{true} < 0.8$', '$0.2 < y_{true} < 0.5$', '$0.1 < y_{true} < 0.2$', '$0.05 < y_{true} < 0.1$', '$0.01 < y_{true} < 0.05$']

for i in range(5):
    y_min, y_max = y_ranges[i]
    mask = (GY_test > y_min) * (GY_test < y_max)
    ax[i].hist(pred_vals[:, 2][mask] / true_vals[:, 2][mask], density=True, bins=100, range=(xmin, xmax))
    ax[i].set_title(titles[i])
    ax[i].axvline(1.0, color='red', lw=2, alpha=0.6)
    ax[i].set_xlabel('y$_{pred.}$ / y$_{true}$')

plt.show()
_images/678d0a24b0ac616827564ab2e1ec8933e473aef0bc514489d88439a3bc8ec93e.png

Comparison plots of resolution for methods vs DNN#

Resolution in x#

print(pandas_df['obs_x'].tail(5))
9999977    [0.004924382083117962 -0.0046023097820580006 0...
9999984    [0.08789674937725067 0.0698225274682045 0.0582...
9999990    [0.008899795822799206 0.007692348212003708 0.0...
9999991    [0.006072165910154581 -0.004472089000046253 0....
9999996    [0.058499809354543686 0.05831887200474739 0.05...
Name: obs_x, dtype: awkward
pandas_df['obs_x'].iloc[-1]
[0.0585,
 0.0583,
 0.0579,
 0.0582,
 0.0586,
 0.0583,
 0.0583,
 0.0583,
 0.0583]
-----------------
backend: cpu
nbytes: 36 B
type: 9 * float32
print(pandas_df['obs_x'].iloc[0])
print(type(pandas_df['obs_x'].iloc[0]))
[0.0153, 0.0196, 0.00937, 0.0115, 0.0142, 0.0119, 0.0125, 0.0125, 0.0119]
<class 'awkward.highlevel.Array'>
# y_ranges = [ (0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)] #---previously defined

mean_xratio = []
rms_xratio = []

def cal_mean_rms(bin_edges,counts, mean_l, rms_l):
  bin_centers = 0.5 * (bin_edges[1:] + bin_edges[:-1])
  mean = np.average(bin_centers, weights=counts)
  rms = np.sqrt(np.average((bin_centers - mean) ** 2, weights=counts))
  mean_l.append(mean)
  rms_l.append(rms)
  return mean_l, rms_l

methods_to_use = [4, 3, 0] # [5, 4, 3, 0]
methods_labels = ['Jacquet-Blondel', 'DA method', 'e method', 'Deep NN'] #'I$\Sigma$ method', 'Jacquet-Blondel', 'DA method', 'e method', 'Deep NN'
xmin = 0.0
xmax = 2.0
y_cut = ['from_tlv_gen_y>0.50 and from_tlv_gen_y<0.80','from_tlv_gen_y>0.20 and from_tlv_gen_y<0.50','from_tlv_gen_y>0.10 and from_tlv_gen_y<0.20','from_tlv_gen_y>0.05 and from_tlv_gen_y<0.10','from_tlv_gen_y>0.01 and from_tlv_gen_y<0.05']

fig, ax = plt.subplots(len(y_cut), len(methods_labels), figsize=(8, 8), sharey='row', sharex=True)


# the standard methods
for i in range(len(methods_to_use)):
    mi = methods_to_use[i]
    for yi in range(len(y_cut)):
        #counts, bin_edges, _ = ax[yi][i].hist(pandas_df.query(y_cut[yi])['obs_x[%d]' % mi] / pandas_df.query(y_cut[yi])['from_tlv_gen_x'],
        #               density=True, bins=100, range=(xmin, xmax))

        counts, bin_edges, _ = ax[yi][i].hist(
            pandas_df.query(y_cut[yi])['obs_x'].apply(lambda x: x[mi]) /
            pandas_df.query(y_cut[yi])['from_tlv_gen_x'],
            density=True, bins=100, range=(xmin, xmax)
        )

        if(yi==0):
          ax[yi][i].set_title(methods_labels[i])

        mean_xratio, rms_xratio= cal_mean_rms(bin_edges,counts, mean_xratio, rms_xratio)



# the DNN method
for yi in range(len(y_cut)):
    counts, bin_edges, _ = ax[yi][len(methods_to_use)].hist(pred_vals[:, 0][(GY_test > y_ranges[yi][0]) * (GY_test < y_ranges[yi][1])] / true_vals[:, 0][(GY_test > y_ranges[yi][0]) * (GY_test < y_ranges[yi][1])],
                   density=True, bins=100, range=(xmin, xmax))
    ax[0][len(methods_to_use)].set_title('Deep NN')

    mean_xratio, rms_xratio= cal_mean_rms(bin_edges,counts, mean_xratio, rms_xratio)


for yi, y_range in enumerate(y_ranges):
    ax[yi][0].set_ylabel(f' ${y_range[0]} < y_{{true}} < {y_range[1]}$')

if(len(y_cut)>0):
  for i in range(len(methods_to_use)+1):
      ax[len(y_cut)-1][i].set_xlabel('x/$x_{true}$')

for i in range(len(y_cut)):
    for j in range(len(methods_to_use)+1): # +1 to include DNN
        ax[i][j].axvline(1.0, color='red', lw=2, alpha=0.6)


plt.subplots_adjust(wspace=0.1, hspace=0.1)
plt.show()
_images/4ca147c1b1fd89e9e03147c75fa882cb02402e7cba7a1f894f8590554588a174.png

Resolution in Q2#

# y_ranges = [ (0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)] #---previously defined


mean_Q2ratio = []
rms_Q2ratio = []

methods_to_use = [4, 3, 0] # [5, 4, 3, 0]
methods_labels = ['Jacquet-Blondel', 'DA method', 'e method', 'Deep NN'] #'I$\Sigma$ method', 'Jacquet-Blondel', 'DA method', 'e method', 'Deep NN'
xmin = 0.5
xmax = 1.5
y_cut = ['from_tlv_gen_y>0.50 and from_tlv_gen_y<0.80','from_tlv_gen_y>0.20 and from_tlv_gen_y<0.50','from_tlv_gen_y>0.10 and from_tlv_gen_y<0.20','from_tlv_gen_y>0.05 and from_tlv_gen_y<0.10','from_tlv_gen_y>0.01 and from_tlv_gen_y<0.05']

fig, ax = plt.subplots(len(y_cut), len(methods_labels), figsize=(8, 8), sharey='row', sharex=True)


# the standard methods
for i in range(len(methods_to_use)):
    mi = methods_to_use[i]
    for yi in range(len(y_cut)):
        #counts, bin_edges, _ = ax[yi][i].hist(pandas_df.query(y_cut[yi])['obs_Q2[%d]' % mi] / pandas_df.query(y_cut[yi])['from_tlv_gen_Q2'],
        #               density=True, bins=100, range=(xmin, xmax))

        counts, bin_edges, _ = ax[yi][i].hist(
            pandas_df.query(y_cut[yi])['obs_Q2'].apply(lambda x: x[mi]) /
            pandas_df.query(y_cut[yi])['from_tlv_gen_Q2'],
            density=True, bins=100, range=(xmin, xmax)
        )

        if(yi==0):
          ax[yi][i].set_title(methods_labels[i])

        mean_Q2ratio, rms_Q2ratio= cal_mean_rms(bin_edges,counts, mean_Q2ratio, rms_Q2ratio)


# the DNN method
for yi in range(len(y_cut)):
    counts, bin_edges, _ =  ax[yi][len(methods_to_use)].hist(pred_vals[:, 1][(GY_test > y_ranges[yi][0]) * (GY_test < y_ranges[yi][1])] / true_vals[:, 1][(GY_test > y_ranges[yi][0]) * (GY_test < y_ranges[yi][1])],
                   density=True, bins=100, range=(xmin, xmax))
    ax[0][len(methods_to_use)].set_title('Deep NN')

    mean_Q2ratio, rms_Q2ratio= cal_mean_rms(bin_edges,counts, mean_Q2ratio, rms_Q2ratio)


for yi, y_range in enumerate(y_ranges):
    ax[yi][0].set_ylabel(f' ${y_range[0]} < y_{{true}} < {y_range[1]}$')

if(len(y_cut)>0):
  for i in range(len(methods_to_use)+1):
      ax[len(y_cut)-1][i].set_xlabel('Q$^2$/Q$^2_{true}$')

for i in range(len(y_cut)):
    for j in range(len(methods_to_use)+1): # +1 to include DNN
        ax[i][j].axvline(1.0, color='red', lw=2, alpha=0.6)


plt.subplots_adjust(wspace=0.1, hspace=0.1)
plt.show()
_images/0e882f912f884fa5ba2a320ffce2a6b393f44d1829d3c8dd118534931cfe0935.png

Resolution in y#

# y_ranges = [ (0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)] #---previously defined

mean_yratio = []
rms_yratio = []

methods_to_use = [4, 3, 0] # [5, 4, 3, 0]
methods_labels = ['Jacquet-Blondel', 'DA method', 'e method', 'Deep NN'] #'I$\Sigma$ method', 'Jacquet-Blondel', 'DA method', 'e method', 'Deep NN'
xmin = 0.5
xmax = 1.5
y_cut = ['from_tlv_gen_y>0.50 and from_tlv_gen_y<0.80','from_tlv_gen_y>0.20 and from_tlv_gen_y<0.50','from_tlv_gen_y>0.10 and from_tlv_gen_y<0.20','from_tlv_gen_y>0.05 and from_tlv_gen_y<0.10','from_tlv_gen_y>0.01 and from_tlv_gen_y<0.05']

fig, ax = plt.subplots(len(y_cut), len(methods_labels), figsize=(8, 8), sharey='row', sharex=True)


# the standard methods
for i in range(len(methods_to_use)):
    mi = methods_to_use[i]
    for yi in range(len(y_cut)):
        #counts, bin_edges, _ = ax[yi][i].hist(pandas_df.query(y_cut[yi])['obs_y[%d]' % mi] / pandas_df.query(y_cut[yi])['from_tlv_gen_y'],
        #               density=True, bins=100, range=(xmin, xmax))

        counts, bin_edges, _ = ax[yi][i].hist(
            pandas_df.query(y_cut[yi])['obs_y'].apply(lambda x: x[mi]) /
            pandas_df.query(y_cut[yi])['from_tlv_gen_y'],
            density=True, bins=100, range=(xmin, xmax)
        )

        if(yi==0):
          ax[yi][i].set_title(methods_labels[i])

        mean_yratio, rms_yratio= cal_mean_rms(bin_edges,counts, mean_yratio, rms_yratio)



# the DNN method
for yi in range(len(y_cut)):
    counts, bin_edges, _ = ax[yi][len(methods_to_use)].hist(pred_vals[:, 2][(GY_test > y_ranges[yi][0]) * (GY_test < y_ranges[yi][1])] / true_vals[:, 2][(GY_test > y_ranges[yi][0]) * (GY_test < y_ranges[yi][1])],
                   density=True, bins=100, range=(xmin, xmax))
    ax[0][len(methods_to_use)].set_title('Deep NN')

    mean_yratio, rms_yratio= cal_mean_rms(bin_edges,counts, mean_yratio, rms_yratio)



for yi, y_range in enumerate(y_ranges):
    ax[yi][0].set_ylabel(f' ${y_range[0]} < y_{{true}} < {y_range[1]}$')

if(len(y_cut)>0):
  for i in range(len(methods_to_use)+1):
      ax[len(y_cut)-1][i].set_xlabel('$y/y_{true}$')

for i in range(len(y_cut)):
    for j in range(len(methods_to_use)+1): # +1 to include DNN
        ax[i][j].axvline(1.0, color='red', lw=2, alpha=0.6)


plt.subplots_adjust(wspace=0.1, hspace=0.1)
plt.show()
_images/f8ac644a3d79f752679c53451bb647027134f14ad8d3bbbebbd1fa353d51fd2f.png

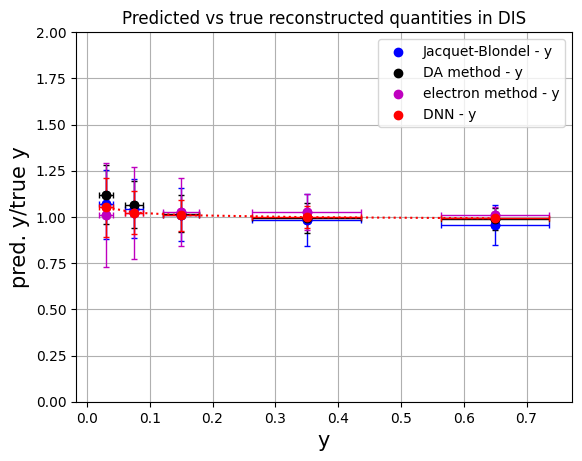

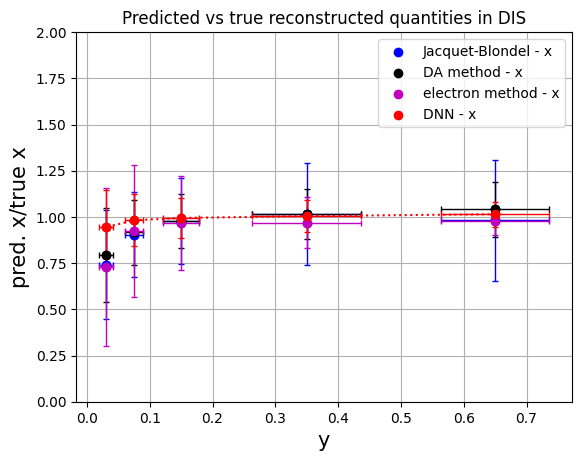

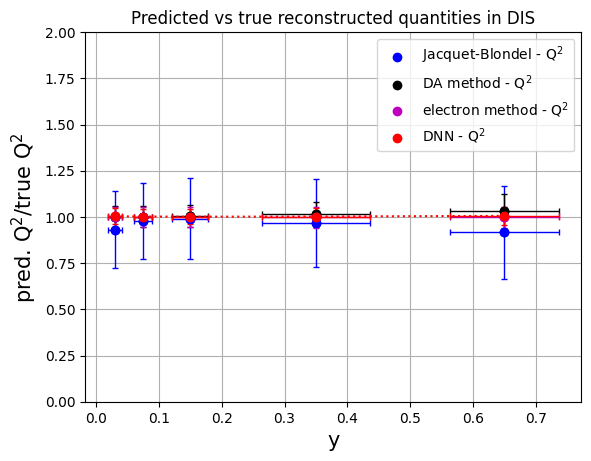

Plotting the results as a function of y#

# convert to numpy arrays for manipulation
# methods: 'Jacquet-Blondel', 'DA method', 'e method', 'Deep NN'

y_ranges = [ (0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)] #---previously defined

ykin = []
err_ykin = []

for values in y_ranges:
  tmp = 0.5*(values[0]+values[1])
  ykin.append(tmp)
  tmp = abs(values[1]-values[0])
  err_ykin.append(tmp/np.sqrt(12.))

ykin = np.array(ykin)
err_ykin = np.array(err_ykin)


meanx_jb = np.array(mean_xratio[0:5])
errx_jb = np.array(rms_xratio[0:5])

meanx_da = np.array(mean_xratio[5:10])
errx_da = np.array(rms_xratio[5:10])

meanx_e = np.array(mean_xratio[10:15])
errx_e = np.array(rms_xratio[10:15])

meanx_dnn = np.array(mean_xratio[15:20])
errx_dnn = np.array(rms_xratio[15:20])

plt.scatter(ykin, meanx_jb, color='b', label='Jacquet-Blondel - x')
plt.errorbar(ykin, meanx_jb, xerr=err_ykin, yerr=errx_jb, fmt='o', color='b', ecolor='b', elinewidth=1, capsize=2) #label='uncertainty'

plt.scatter(ykin, meanx_da, color='k', label='DA method - x')
plt.errorbar(ykin, meanx_da, xerr=err_ykin, yerr=errx_da, fmt='o', color='k', ecolor='k', elinewidth=1, capsize=2)

plt.scatter(ykin, meanx_e, color='m', label='electron method - x')
plt.errorbar(ykin, meanx_e, xerr=err_ykin, yerr=errx_e, fmt='o', color='m', ecolor='m', elinewidth=1, capsize=2)

plt.scatter(ykin, meanx_dnn, color='r', label='DNN - x')
plt.errorbar(ykin, meanx_dnn, xerr=err_ykin, yerr=errx_dnn, fmt='o', color='r', ecolor='r', elinewidth=1, capsize=2, linestyle=':')


plt.xlabel('y',fontsize=15)
plt.ylabel('pred. x/true x',fontsize=15)
plt.ylim(0.,2.)
plt.title('Predicted vs true reconstructed quantities in DIS')
plt.legend()
plt.grid(True)
plt.show()
_images/b5144894813156f926defc2b26c72d6738bce31c1aee4389b53f4b8218454eb9.png
# convert to numpy arrays for manipulation
# methods: 'Jacquet-Blondel', 'DA method', 'e method', 'Deep NN'

y_ranges = [ (0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)] #---previously defined

meanQ2_jb = np.array(mean_Q2ratio[0:5])
errQ2_jb = np.array(rms_Q2ratio[0:5])

meanQ2_da = np.array(mean_Q2ratio[5:10])
errQ2_da = np.array(rms_Q2ratio[5:10])

meanQ2_e = np.array(mean_Q2ratio[10:15])
errQ2_e = np.array(rms_Q2ratio[10:15])

meanQ2_dnn = np.array(mean_Q2ratio[15:20])
errQ2_dnn = np.array(rms_Q2ratio[15:20])

plt.scatter(ykin, meanQ2_jb, color='b', label='Jacquet-Blondel - Q$^{2}$')
plt.errorbar(ykin, meanQ2_jb, xerr=err_ykin, yerr=errQ2_jb, fmt='o', color='b', ecolor='b', elinewidth=1, capsize=2) #label='uncertainty'

plt.scatter(ykin, meanQ2_da, color='k', label='DA method - Q$^{2}$')
plt.errorbar(ykin, meanQ2_da, xerr=err_ykin, yerr=errQ2_da, fmt='o', color='k', ecolor='k', elinewidth=1, capsize=2)

plt.scatter(ykin, meanQ2_e, color='m', label='electron method - Q$^{2}$')
plt.errorbar(ykin, meanQ2_e, xerr=err_ykin, yerr=errQ2_e, fmt='o', color='m', ecolor='m', elinewidth=1, capsize=2)

plt.scatter(ykin, meanQ2_dnn, color='r', label='DNN - Q$^{2}$')
plt.errorbar(ykin, meanQ2_dnn, xerr=err_ykin, yerr=errQ2_dnn, fmt='o', color='r', ecolor='r', elinewidth=1, capsize=2, linestyle=':')


plt.xlabel('y',fontsize=15)
plt.ylabel('pred. Q$^{2}$/true Q$^{2}$',fontsize=15)
plt.ylim(0.,2.)
plt.title('Predicted vs true reconstructed quantities in DIS')
plt.legend()
plt.grid(True)
plt.show()
_images/79de1e7cab0bfec5b97747aa54233be5a3b22e90781be3876f9955c0dc55a676.png
# convert to numpy arrays for manipulation
# methods: 'Jacquet-Blondel', 'DA method', 'e method', 'Deep NN'

y_ranges = [ (0.5, 0.8), (0.2, 0.5), (0.1, 0.2), (0.05, 0.1), (0.01, 0.05)] #---previously defined


meany_jb = np.array(mean_yratio[0:5])
erry_jb = np.array(rms_yratio[0:5])

meany_da = np.array(mean_yratio[5:10])
erry_da = np.array(rms_yratio[5:10])

meany_e = np.array(mean_yratio[10:15])
erry_e = np.array(rms_yratio[10:15])

meany_dnn = np.array(mean_yratio[15:20])
erry_dnn = np.array(rms_yratio[15:20])

plt.scatter(ykin, meany_jb, color='b', label='Jacquet-Blondel - y')
plt.errorbar(ykin, meany_jb, xerr=err_ykin, yerr=erry_jb, fmt='o', color='b', ecolor='b', elinewidth=1, capsize=2) #label='uncertainty'

plt.scatter(ykin, meany_da, color='k', label='DA method - y')
plt.errorbar(ykin, meany_da, xerr=err_ykin, yerr=erry_da, fmt='o', color='k', ecolor='k', elinewidth=1, capsize=2)

plt.scatter(ykin, meany_e, color='m', label='electron method - y')
plt.errorbar(ykin, meany_e, xerr=err_ykin, yerr=erry_e, fmt='o', color='m', ecolor='m', elinewidth=1, capsize=2)

plt.scatter(ykin, meany_dnn, color='r', label='DNN - y')
plt.errorbar(ykin, meany_dnn, xerr=err_ykin, yerr=erry_dnn, fmt='o', color='r', ecolor='r', elinewidth=1, capsize=2, linestyle=':')


plt.xlabel('y',fontsize=15)
plt.ylabel('pred. y/true y',fontsize=15)
plt.ylim(0.,2.)
plt.title('Predicted vs true reconstructed quantities in DIS')
plt.legend()
plt.grid(True)
plt.show()
_images/5fd57924e4b10366c54a0d343482f32eaa4ee39bcefdc29bbb11311a6c75d78a.png
